Texas Instruments recommends a 4-layer PCB with a solid ground plane, and placing the ADC close to the analog signal sources. Additionally, it's recommended to keep the analog and digital grounds separate and connect them at a single point.
To optimize performance in noisy environments, use a low-pass filter on the analog input, keep the analog signal traces short and away from digital signal traces, and use a shielded cable for the analog input. Additionally, consider using a common-mode filter or a differential amplifier to reject common-mode noise.
The maximum sampling rate of the ADS1286U/2K5 is 250 kSPS, but this can be affected by the clock frequency, analog input bandwidth, and system noise. In practice, a sampling rate of 100 kSPS to 200 kSPS is more typical.
The ADS1286U/2K5 has an internal calibration mechanism, but it's recommended to perform an external calibration using a known reference voltage to ensure optimal performance. This can be done by applying a known voltage to the analog input and adjusting the offset and gain registers accordingly.
The power consumption of the ADS1286U/2K5 is typically around 15 mW, but this can be reduced by using the power-down mode, reducing the clock frequency, and optimizing the analog input impedance. Additionally, consider using a low-power mode or a sleep mode when the ADC is not in use.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS1286U/2K5 Overview

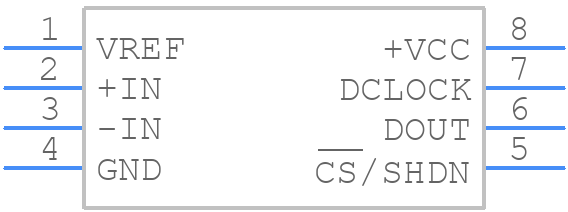

Use the download button to access the ADS1286U/2K5 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS12,
or try a keyword search, such as Analog to Digital Converters
