Texas Instruments recommends a 4-layer PCB with a solid ground plane, and placing the ADS1286UC close to the analog signal sources to minimize noise. Additionally, decoupling capacitors should be placed as close as possible to the device's power pins.
Optimizing the ADC's performance requires careful consideration of the input signal, clock frequency, and gain settings. TI provides an ADC Performance Calculator tool to help engineers optimize the ADS1286UC's performance for their specific application.
The ADS1286UC's performance is affected by temperature, with changes in offset voltage, gain error, and noise floor. TI provides temperature coefficients for these parameters in the datasheet, allowing engineers to compensate for temperature effects in their design.
To ensure EMC, TI recommends using a shielded enclosure, minimizing PCB trace lengths, and using a common-mode filter on the analog input signals. Additionally, the ADS1286UC's digital outputs should be isolated from the analog inputs using digital isolators or optocouplers.
TI recommends powering up the ADS1286UC in the following sequence: AVDD, DVDD, and then the clock signal. This ensures that the device's internal biasing and reference circuits are properly initialized.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS1286UC Overview

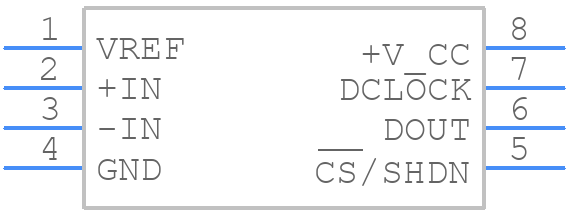

Use the download button to access the ADS1286UC schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS12,
or try a keyword search, such as Analog to Digital Converters
