The ADS1291IPBSR is a high-impedance device, so it's crucial to minimize noise and interference. Place the device close to the electrodes, use a solid ground plane, and keep analog and digital traces separate. Also, ensure that the device is decoupled properly with capacitors.
The gain settings depend on the electrode impedance, signal amplitude, and desired signal-to-noise ratio. Start with the default gain settings and adjust based on your application's requirements. You can use the device's built-in gain calibration feature to optimize the gain settings.
Use a combination of analog and digital filtering techniques. The ADS1291IPBSR has built-in analog filters, and you can also implement digital filters in your application code. Additionally, consider using techniques like common-mode rejection, shielding, and grounding to minimize noise.
Follow proper PCB design and layout guidelines, use shielding and grounding techniques, and ensure that the device is properly decoupled. Also, consider using electromagnetic interference (EMI) filters and shielding on the device's inputs and outputs.
Power up the device in the following sequence: AVDD, DVDD, and then CLK. Power down in the reverse sequence. Ensure that the power supplies are stable and well-regulated to prevent damage to the device.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS1291IPBSR Overview

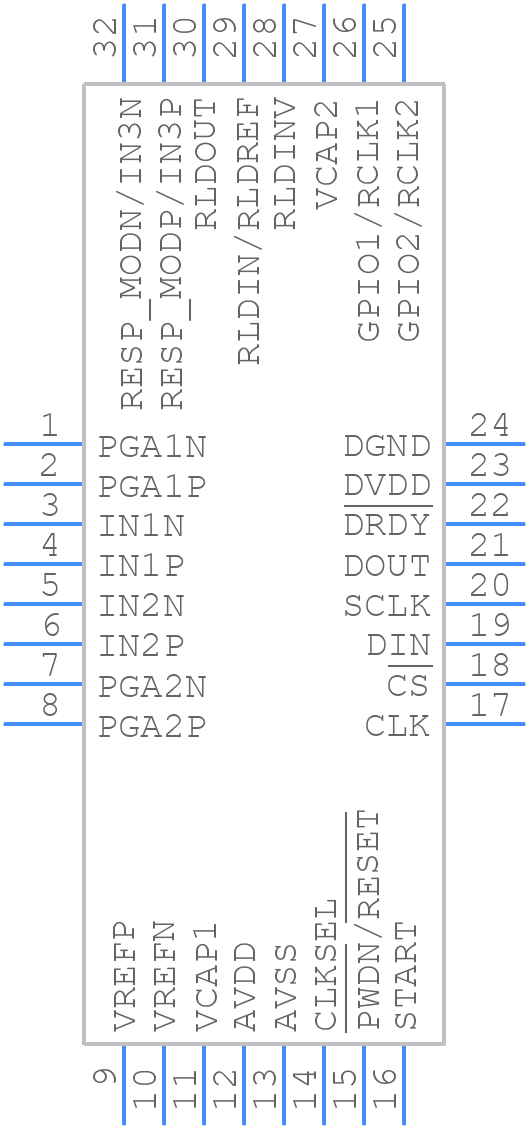

Use the download button to access the ADS1291IPBSR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS12,
or try a keyword search, such as Analog to Digital Converters
