The ADS1291IRSMR is a sensitive analog device, and proper layout and placement are crucial for optimal performance. TI recommends placing the device close to the electrodes, using a star-ground configuration, and minimizing the length of analog signal traces. Additionally, it's essential to separate analog and digital grounds and to use a solid ground plane.
The ADS1291IRSMR has programmable gain settings, and optimizing them for your specific application requires understanding the signal amplitude and frequency content of your input signals. TI recommends using the device's built-in calibration modes to determine the optimal gain settings. You can also use the device's internal PGA (Programmable Gain Amplifier) to adjust the gain in real-time.
To reduce noise and interference, TI recommends using a solid ground plane, separating analog and digital grounds, and using shielding and filtering techniques. Additionally, use a low-pass filter to remove high-frequency noise, and consider using a common-mode filter to reject common-mode noise. Proper PCB layout and component selection are also crucial for minimizing noise and interference.
To ensure EMC, TI recommends following proper PCB layout and design practices, such as using a solid ground plane, separating analog and digital grounds, and using shielding and filtering techniques. Additionally, consider using a metal enclosure and ensuring that all cables and connectors are properly shielded. TI also recommends performing EMC testing to ensure compliance with relevant standards.
The ADS1291IRSMR has a maximum junction temperature of 150°C. TI recommends ensuring good thermal conductivity between the device and the PCB, using thermal vias, and providing adequate airflow to prevent overheating. Additionally, consider using a heat sink or thermal interface material to improve heat dissipation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS1291IRSMR Overview

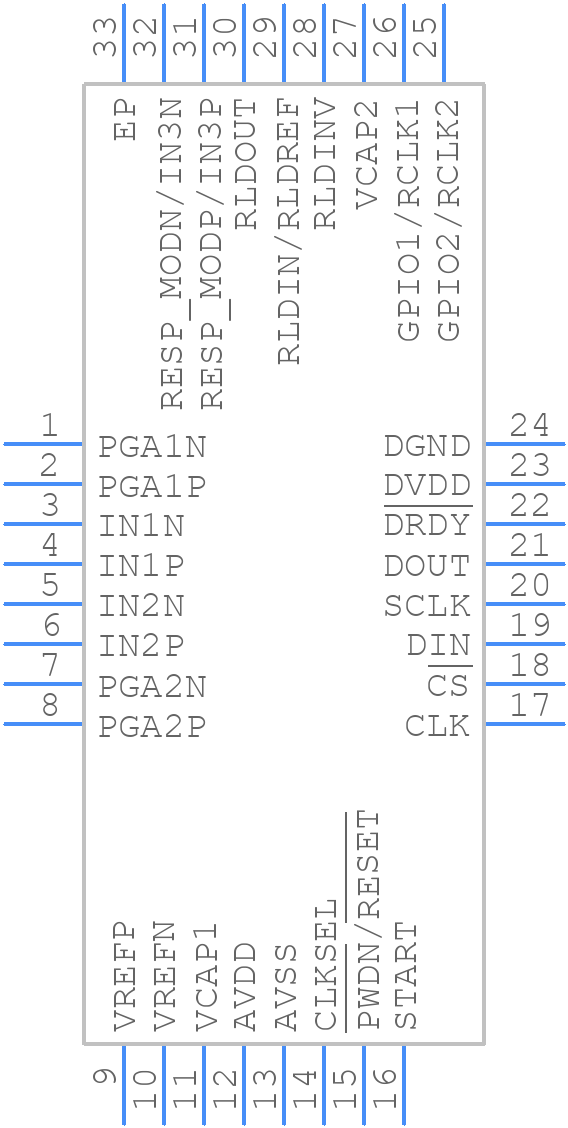

Use the download button to access the ADS1291IRSMR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS12,
or try a keyword search, such as Analog to Digital Converters
