The ADS1292IPBS is a high-impedance device, so it's crucial to minimize noise and interference. Place the device close to the electrodes, use a solid ground plane, and keep analog and digital traces separate. Also, ensure that the device is decoupled from the power supply using capacitors.
The ADS1292IPBS has a programmable gain amplifier (PGA). To optimize the gain, start with the default gain setting and adjust based on your signal amplitude. You can use the device's internal calibration signal to determine the optimal gain. Also, consider the noise floor and desired signal-to-noise ratio (SNR) when selecting the gain.
The ADS1292IPBS has a built-in digital filter, but you may need additional filtering depending on your application. Use a combination of analog and digital filtering techniques, such as notch filters, low-pass filters, and common-mode rejection ratio (CMRR) enhancement. Also, consider using shielding, grounding, and layout techniques to minimize noise and interference.
To ensure EMC and EMI compliance, follow proper PCB design and layout guidelines, use shielding and grounding techniques, and minimize loop areas. Also, consider using EMI filters, ferrite beads, and common-mode chokes to reduce emissions and susceptibility.
The ADS1292IPBS requires a clean and stable power supply. Use a low-dropout regulator (LDO) or a switching regulator with a low noise output. Decouple the power supply lines using capacitors with low equivalent series resistance (ESR) and place them close to the device. Also, consider using a power supply filter or a pi-filter to reduce noise and ripple.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS1292IPBS Overview

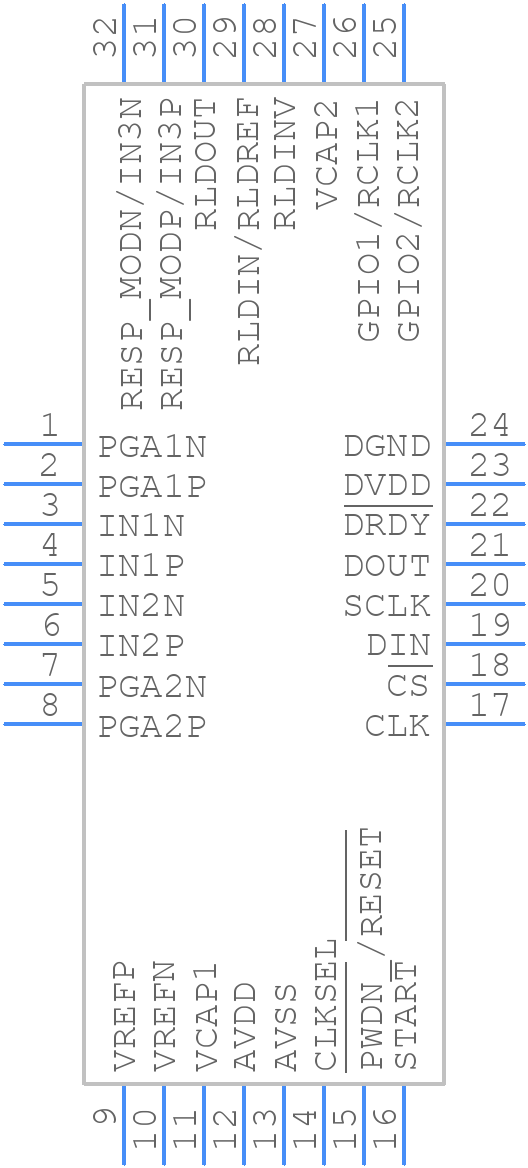

Use the download button to access the ADS1292IPBS schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS12,
or try a keyword search, such as Analog to Digital Converters
