The ADS1292IRSMR is a sensitive analog device, and proper layout and placement are crucial for optimal performance. TI recommends placing the device close to the electrodes, using a star-ground configuration, and minimizing the length of analog signal traces. Additionally, it's essential to separate analog and digital grounds and to use a solid ground plane.
The ADS1292IRSMR has programmable gain settings, and optimizing them for your specific application is crucial. TI recommends starting with the default gain settings and adjusting them based on the signal amplitude and noise floor of your application. You can use the device's built-in calibration modes to measure the signal amplitude and adjust the gain accordingly.
The ADS1292IRSMR has built-in filters, but additional filtering may be necessary to remove noise and interference. TI recommends using a combination of analog and digital filtering techniques, such as notch filters, low-pass filters, and adaptive filtering algorithms. Additionally, proper shielding, grounding, and layout can help reduce noise and interference.
To ensure EMC, TI recommends following proper PCB design and layout guidelines, using shielding and grounding techniques, and implementing electromagnetic interference (EMI) filters. Additionally, ensure that your system meets the relevant EMC standards and regulations for your application.
The ADS1292IRSMR has a typical power consumption of 13.5 mW, and thermal considerations are essential to ensure reliable operation. TI recommends using a thermal pad or heat sink to dissipate heat, and ensuring that the device is operated within the recommended temperature range.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS1292IRSMR Overview

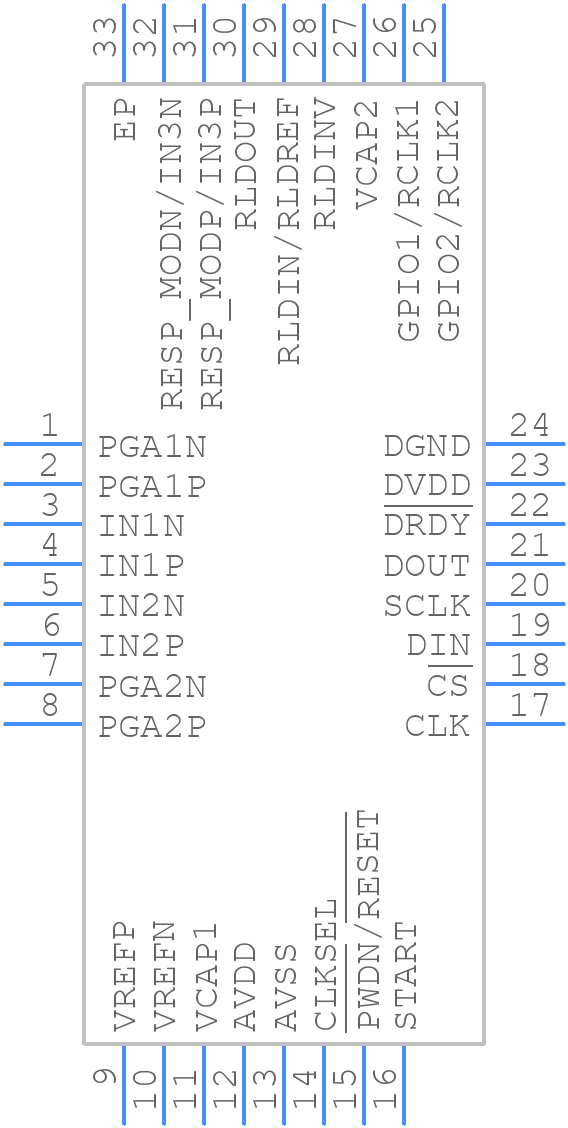

Use the download button to access the ADS1292IRSMR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS12,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
