The ADS1292RIPBS is a high-impedance device, so it's essential to keep the analog signal traces short and away from digital signal traces. Place the device close to the electrodes, and use a ground plane to minimize noise. Refer to the TI application note 'ADS1292RIPBS PCB Layout Guidelines' for more information.
The ADS1292RIPBS has a programmable gain amplifier (PGA) that allows you to adjust the gain from 1 to 12. To optimize the gain settings, you need to consider the amplitude of your signal, the desired signal-to-noise ratio (SNR), and the input range of the ADC. Start with a low gain setting and gradually increase it until you achieve the desired SNR.
The ADS1292RIPBS has a built-in digital filter that can be configured to remove noise and interference. You can also use external filters, such as a notch filter to remove power line noise or a low-pass filter to remove high-frequency noise. Additionally, consider using shielding, grounding, and proper PCB layout to minimize electromagnetic interference (EMI).
To ensure accuracy and reliability, calibrate the ADS1292RIPBS regularly, use a high-quality electrode, and maintain a clean and stable power supply. Also, consider implementing error detection and correction mechanisms, such as cyclic redundancy checks (CRCs) and checksums, to detect and correct errors in the data transmission.
The ADS1292RIPBS can support data rates up to 32 kSPS (kilosamples per second) per channel. However, the actual data rate may be limited by the system's clock speed, the number of channels, and the communication interface used.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS1292RIPBS Overview

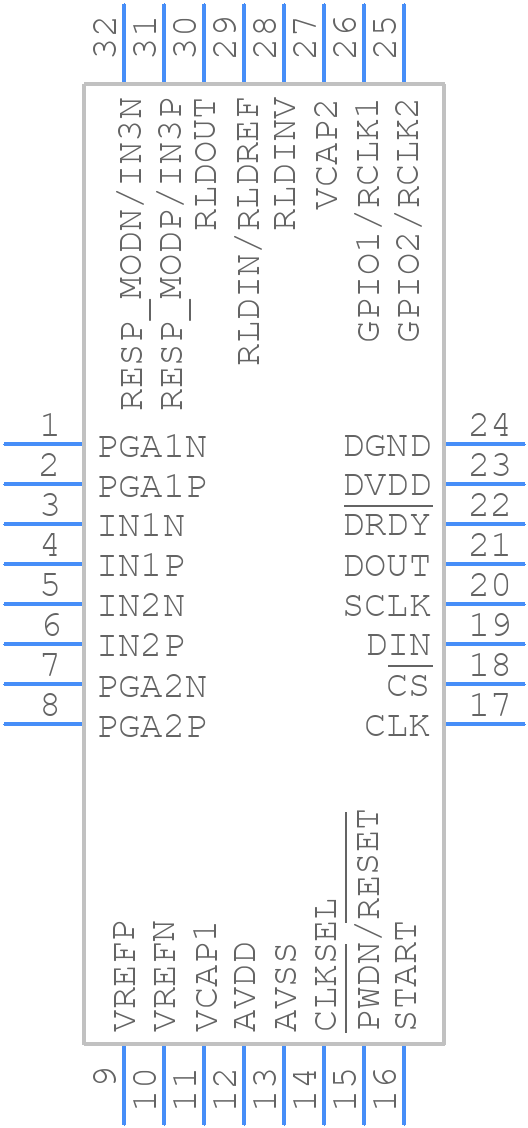

Use the download button to access the ADS1292RIPBS schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS12,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
