The ADS1292RIRSMR is a sensitive analog device, and proper layout and placement are crucial for optimal performance. TI recommends placing the device close to the electrodes, using a star-ground configuration, and minimizing the distance between the device and the analog-to-digital converter (ADC). Additionally, it's essential to follow proper PCB design guidelines, such as using a solid ground plane, minimizing noise, and using shielding to reduce electromagnetic interference (EMI).
The ADS1292RIRSMR has programmable gain amplifiers (PGAs) that allow you to adjust the gain to suit your specific application. To optimize the gain settings, you'll need to consider factors such as the signal amplitude, noise floor, and desired signal-to-noise ratio (SNR). TI recommends using the device's built-in calibration features and following the guidelines in the datasheet to determine the optimal gain settings for your application.
To reduce noise and interference in your design, TI recommends using proper shielding, grounding, and layout techniques. Additionally, consider using filters, such as the device's built-in filters or external filters, to reduce noise and electromagnetic interference (EMI). It's also essential to minimize the distance between the electrodes and the device, and to use a low-noise power supply.
To ensure EMC compliance, TI recommends following proper design and layout guidelines, such as using a solid ground plane, minimizing noise, and using shielding to reduce EMI. Additionally, consider using external filters or shielding to reduce radiated emissions. It's also essential to follow the guidelines in the datasheet and to consult with a qualified EMC engineer to ensure compliance with relevant regulations.
The ADS1292RIRSMR is a sensitive analog device that can be affected by temperature changes. TI recommends operating the device within the specified temperature range (–40°C to 85°C) and ensuring proper thermal management, such as using a heat sink or thermal pad, to prevent overheating. Additionally, consider using thermal simulation tools to analyze the thermal performance of your design.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS1292RIRSMR Overview

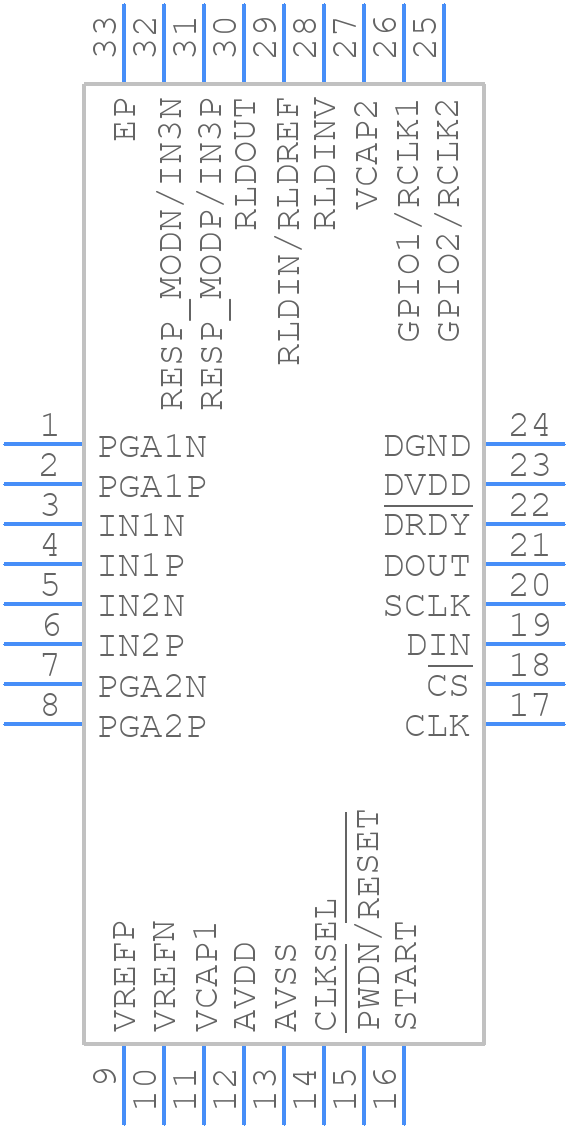

Use the download button to access the ADS1292RIRSMR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS12,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
