The ADS1298CZXGT requires careful PCB layout and routing to minimize noise and ensure optimal performance. TI recommends following the layout guidelines in the datasheet, including keeping analog and digital traces separate, using a solid ground plane, and minimizing the length of analog input traces.
The ADS1298CZXGT has programmable gain settings, but optimizing them requires understanding the signal amplitude and frequency content of your application. TI recommends using the device's built-in calibration features and following the gain setting guidelines in the datasheet to achieve optimal performance.
To minimize EMI and RFI, TI recommends using proper shielding, grounding, and filtering techniques. The ADS1298CZXGT has built-in EMI filters, but additional external filtering may be necessary depending on the application. Following proper PCB layout and routing practices also helps to reduce EMI and RFI susceptibility.
To ensure data integrity and accuracy, TI recommends using the device's built-in error detection and correction features, such as CRC and ECC. Additionally, implementing proper signal conditioning, filtering, and amplification can help to improve data accuracy.
The ADS1298CZXGT has specific power sequencing requirements to ensure proper operation. TI recommends following the power-up and power-down sequencing guidelines in the datasheet to prevent damage to the device or other components in the system.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS1298CZXGT Overview

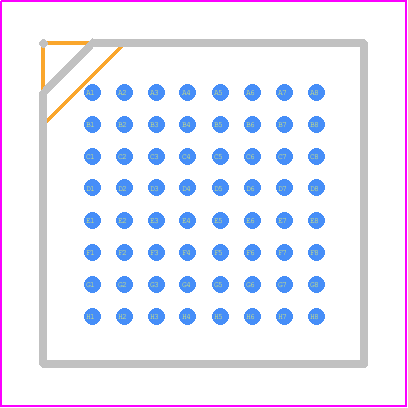

Use the download button to access the ADS1298CZXGT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS12,
or try a keyword search, such as Analog to Digital Converters
