ADS130B04QPWRQ1 - Texas Instruments

Description: Analog to Digital Converters - ADC Automotive 16-bit, 32-kSPS, four-channel, simultaneous-sampling, delta-sigma ADC

Download ADS130B04QPWRQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

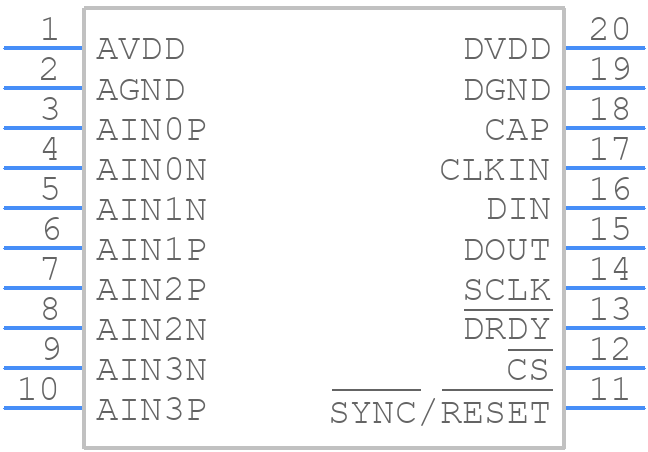

ADS130B04QPWRQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
ADS130B04QPWRQ1 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PW0020A
click to zoom
3D Models
ADS130B04QPWRQ1 - Texas Instruments - 3D model - Small Outline Packages - PW0020A
click to zoom

ADS130B04QPWRQ1 Details

  • Manufacturer Part Number:

    ADS130B04QPWRQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSSOP-20

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Input Voltage-Max:

    2.4 V

  • Analog Input Voltage-Min:

    -0.3 V

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e4

  • Length:

    6.5 mm

  • Linearity Error-Max (EL):

    0.001%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    4

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP20,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    0.032 MHz

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    8 mA

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

ADS130B04QPWRQ1 Frequently Asked Questions (FAQs)

  • Texas Instruments provides a layout and routing guide in the ADS130B04 application note (SLAU445) that recommends a 4-layer PCB with a dedicated analog ground plane, and careful routing of analog and digital signals to minimize noise coupling.
  • The ADS130B04QPWRQ1 has an internal calibration mechanism, but it's recommended to perform an external calibration using a known voltage reference and a calibration routine to achieve the best possible accuracy. The calibration process is described in the ADS130B04 datasheet and application note.
  • The ADS130B04QPWRQ1 has an absolute maximum rating of 7V on the analog input pins, but it's recommended to limit the input voltage to 5V or less to ensure reliable operation and prevent damage to the device.
  • Yes, the ADS130B04QPWRQ1 can be used in a multi-channel configuration. To synchronize the conversions, you can use the SYNC pin to trigger the conversions on multiple devices simultaneously. The synchronization process is described in the ADS130B04 datasheet and application note.
  • The power consumption of the ADS130B04QPWRQ1 depends on the operating mode and frequency. In low-power mode, the device consumes around 350uA. To minimize power consumption, you can use the power-down mode, reduce the clock frequency, and optimize the conversion rate. The power consumption is described in the ADS130B04 datasheet.
