The recommended layout and routing for the ADS131A04IPBS involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the analog input traces. It's also important to keep the ADC clock signal away from the analog input signals.
To optimize the performance of the ADS131A04IPBS in noisy environments, use a low-pass filter on the analog input signals, use a shielded cable for the analog input connections, and consider using a common-mode filter or a differential amplifier to reduce noise.
The maximum sampling rate of the ADS131A04IPBS is 128 kSPS, but this can be affected by the clock frequency, the number of channels, and the resolution mode.
The ADS131A04IPBS has an internal calibration mechanism that can be initiated through the CAL pin. The calibration process involves shorting the analog input pins to the internal reference voltage, and then reading the calibration coefficients from the device.
The power consumption of the ADS131A04IPBS depends on the operating mode, clock frequency, and resolution. In normal operation, the device consumes around 15 mW, but this can be reduced to around 1 mW in low-power mode.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS131A04IPBS Overview

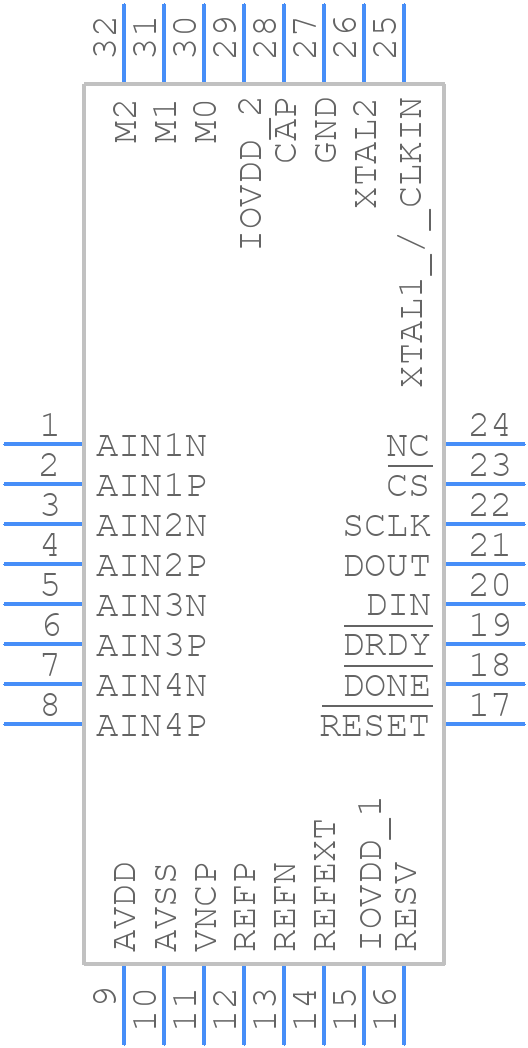

Use the download button to access the ADS131A04IPBS schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS13,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
Suggested Parts
If you searched for ADS131A04IPBS, you might also be interested in these parts:
