Texas Instruments provides a layout guide in the datasheet, but it's also recommended to follow general high-impedance analog layout practices, such as keeping analog and digital traces separate, using a solid ground plane, and placing the device close to the analog signal sources.
To optimize performance in noisy environments, use proper shielding, grounding, and filtering techniques. Additionally, consider using the device's built-in features such as the programmable gain amplifier and the digital filter to reject noise and interference.
The maximum sampling rate of the ADS131B02QPWRQ1 is 400 kSPS, but this can be affected by the clock frequency, data transfer rate, and other system-level factors. Consult the datasheet and application notes for more information.
The ADS131B02QPWRQ1 is specified to operate from 2.7V to 5.5V, but it's recommended to use a 5V supply voltage for optimal performance. If you must use a 3.3V supply, consult the datasheet and application notes for specific guidance on performance and limitations.
The ADS131B02QPWRQ1 has a built-in calibration mechanism, but it's also recommended to perform system-level calibration and trimming to achieve optimal accuracy. Consult the datasheet and application notes for specific guidance on calibration procedures and techniques.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS131B02QPWRQ1 Overview

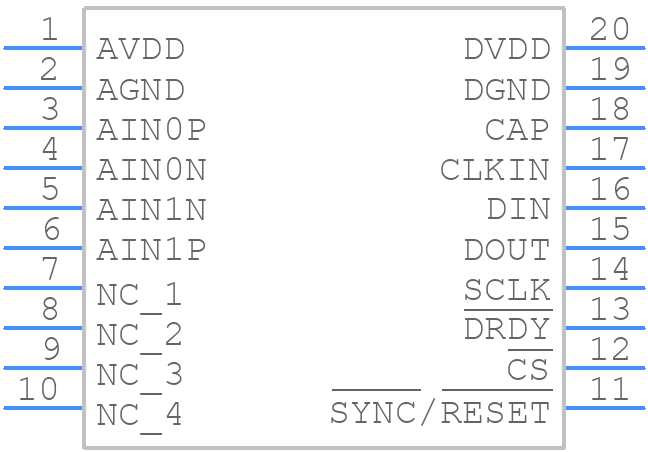

Use the download button to access the ADS131B02QPWRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS13,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
