Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep analog and digital signals separate. Use short, direct traces for analog signals, and avoid crossing digital signals over analog signals. Also, use a common mode filter and a ferrite bead to filter out high-frequency noise.
Optimize the ADC's performance by selecting the correct gain, offset, and sampling rate for your application. Use the device's built-in calibration features to minimize offset and gain errors. Also, consider using the device's internal reference voltage or an external reference voltage with low noise and high stability.
Use a SPI or I2C interface to communicate with the ADS131E08IPAGR. Ensure that the microcontroller or FPGA is configured to match the ADC's clock speed and data format. Use a level shifter if necessary to match the voltage levels between the ADC and the microcontroller or FPGA.
Implement error detection and correction mechanisms in your firmware to handle errors such as overflow, underflow, and CRC errors. Use the device's built-in error detection features, such as the parity bit and CRC check. Also, consider using a watchdog timer to detect and recover from system failures.
Ensure good thermal conductivity between the device and the PCB. Use a thermal pad or thermal interface material to improve heat transfer. Operate the device within the recommended temperature range (-40°C to 125°C) and avoid overheating, which can cause errors and reduce the device's lifespan.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS131E08IPAGR Overview

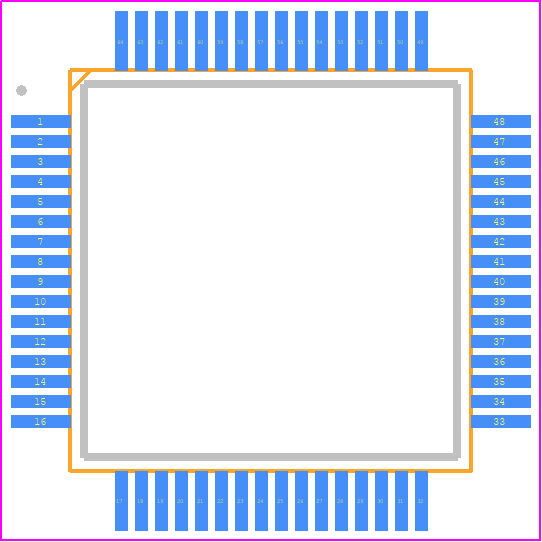

Use the download button to access the ADS131E08IPAGR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS13,
or try a keyword search, such as Other Signal Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
