ADS131M02IRUKR - Texas Instruments

Description: Encoders, Decoders, Multiplexers & Demultiplexers Dual 4-to-1 multiplexer with Schmitt-trigger inputs 16-SOIC -40 to 125

Download ADS131M02IRUKR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

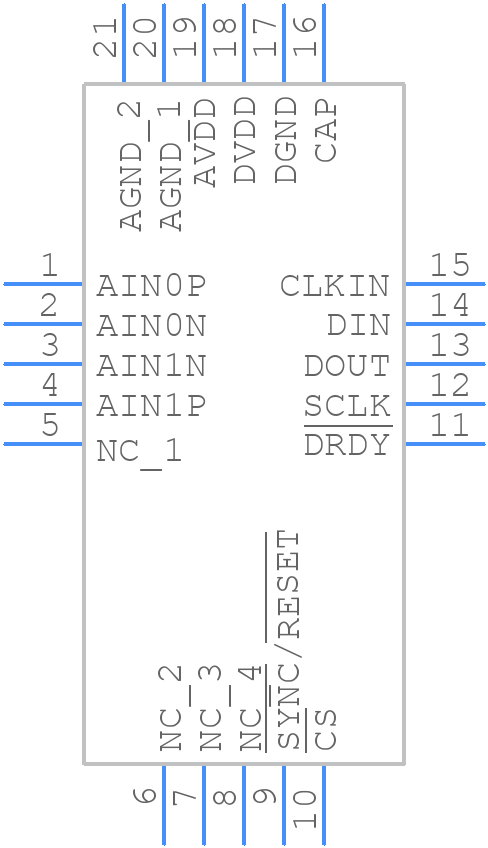

ADS131M02IRUKR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
ADS131M02IRUKR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RUK (S-PWQFN-N20)
click to zoom
3D Models
ADS131M02IRUKR - Texas Instruments - 3D model - Quad Flat No-Lead - RUK (S-PWQFN-N20)
click to zoom

ADS131M02IRUKR Details

  • Manufacturer Part Number:

    ADS131M02IRUKR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    HVQCCN-20

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Input Voltage-Max:

    3.6 V

  • Analog Input Voltage-Min:

    -1.3 V

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    S-PQCC-N20

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.0006%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    2

  • Number of Bits:

    24

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC20,.12SQ,16

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    0.064 MHz

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    2.15 mA

  • Supply Voltage-Min:

    1.65 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

ADS131M02IRUKR Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep analog and digital signals separate. Use short, direct traces for analog signals, and avoid crossing digital signals over analog signals. Also, use a common mode filter or a ferrite bead to filter out high-frequency noise.
  • Optimize the ADC's performance by selecting the correct gain, offset, and sampling rate for your application. Use the device's built-in calibration features to minimize offset and gain errors. Also, consider using the device's internal reference voltage or an external reference voltage with low noise and high stability.
  • Power up the device in the following sequence: AVDD, DVDD, and then the analog input voltage. Ensure that the power supplies are stable and within the recommended voltage range before applying the analog input signal.
  • The ADS131M02IRUKR outputs 24-bit data in a serial format. Use a microcontroller or FPGA to receive and process the data. Ensure that the receiving device can handle the data rate and format. Consider using a FIFO or buffer to handle data overflow and ensure data integrity.
  • Use the device's SYNC pin to synchronize multiple devices. Apply a common SYNC signal to all devices, and ensure that the devices are configured to use the same clock source and sampling rate. This ensures that all devices sample the input signals simultaneously.
