Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep analog and digital signals separate. Use short, direct traces for analog signals, and avoid crossing digital signals over analog signals. Also, use a common mode filter and a ferrite bead to filter out high-frequency noise.
Optimize the ADC's performance by selecting the correct gain, offset, and sampling rate for your application. Use the device's built-in calibration features to minimize offset and gain errors. Also, consider using the device's internal voltage reference or an external reference with low noise and high stability.
Use a SPI or I2C interface to communicate with the ADS131M03IRUKR. Ensure that the microcontroller or FPGA can handle the ADC's data rate and that the interface signals are properly buffered and terminated. Also, consider using a FIFO or buffer to handle data transfer and minimize data loss.
Implement error detection and correction mechanisms in your firmware or software to handle errors such as data corruption, overflow, or underflow. Use the device's built-in error detection features, such as CRC or parity checking, and implement retry mechanisms for failed conversions.
Ensure that the device is operated within its specified temperature range (-40°C to 125°C). Use thermal management techniques such as heat sinks, thermal interfaces, and airflow to maintain a stable temperature. Also, consider using thermal monitoring and shutdown features to prevent overheating.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS131M03IRUKR Overview

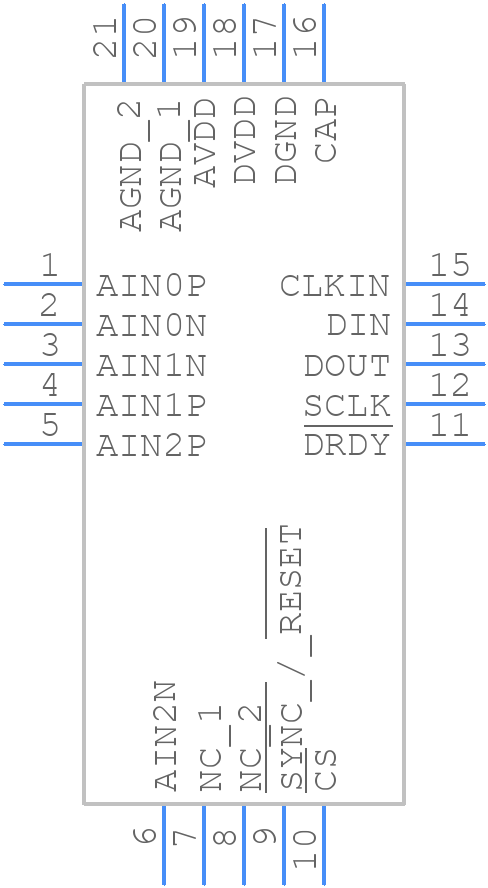

Use the download button to access the ADS131M03IRUKR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS13,
or try a keyword search, such as Analog to Digital Converters
