Texas Instruments provides a layout guide in the ADS131M04 datasheet, which recommends a 4-layer PCB with a dedicated analog ground plane, and careful routing of analog and digital signals to minimize noise coupling. Additionally, it's recommended to use a common-mode filter and a low-pass filter to reduce noise and aliasing.
The ADS131M04IRUKT has an internal calibration mechanism, but it's recommended to perform an external calibration to achieve the best possible accuracy. This can be done by applying a known input voltage and measuring the output code, and then adjusting the gain and offset registers accordingly. Texas Instruments provides a calibration guide in the ADS131M04 datasheet.
The maximum input voltage range for the ADS131M04IRUKT is ±VREF (typically ±2.5V). To handle overvoltage protection, it's recommended to use external voltage limiting resistors and diodes to clamp the input voltage to within the specified range. Additionally, the ADS131M04IRUKT has an overvoltage detection feature that can be enabled to detect and flag overvoltage conditions.
To optimize power consumption, it's recommended to use the lowest possible clock frequency, disable unnecessary features, and use the power-down mode when not in use. Additionally, the ADS131M04IRUKT has a low-power mode that can be enabled to reduce power consumption. Texas Instruments provides power consumption estimates in the ADS131M04 datasheet.
The recommended clock frequency for the ADS131M04IRUKT is between 2 MHz and 4 MHz. A higher clock frequency can improve conversion speed and throughput, but may also increase power consumption and noise sensitivity. A lower clock frequency can reduce power consumption and noise sensitivity, but may also reduce conversion speed and throughput.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS131M04IRUKT Overview

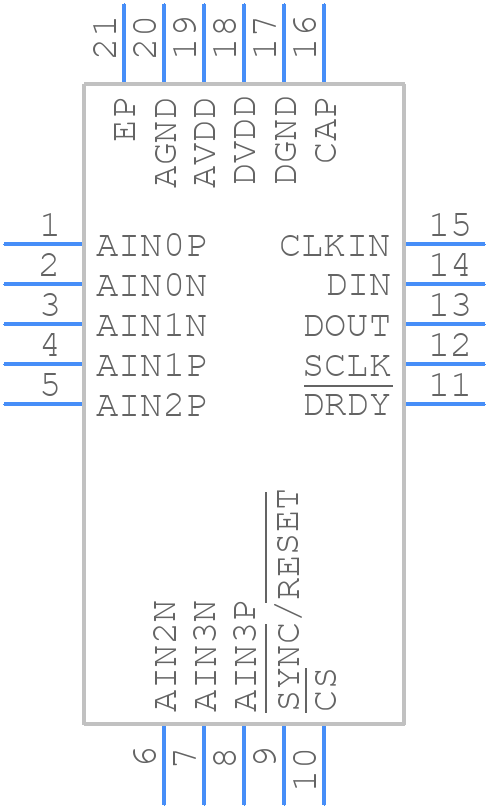

Use the download button to access the ADS131M04IRUKT schematic symbol, PCB footprint, and 3D model.
