Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep analog and digital signals separate. Use short, direct traces for analog signals, and avoid crossing digital signals over analog signals. Also, use a common mode filter and a ferrite bead to filter out high-frequency noise.
Optimize the ADC's performance by selecting the correct gain, offset, and sampling rate for your application. Use the device's built-in calibration features to minimize offset and gain errors. Also, consider using the device's internal voltage reference or an external reference with low noise and high stability.
Use a SPI or I2C interface to communicate with the ADS131M06IPBSR. Ensure that the microcontroller or FPGA can handle the ADC's data rate and that the interface signals are properly buffered and terminated. Also, consider using a FIFO or buffer to handle data transfer and minimize data loss.
Use the device's built-in error detection features, such as the overflow and underflow flags. Implement error handling routines in your firmware to detect and respond to errors, such as resetting the ADC or recalibrating the device.
Ensure good thermal conductivity by using a heat sink or thermal pad on the device. Operate the device within the recommended temperature range (-40°C to 125°C) and avoid thermal gradients. Also, consider using thermal simulation tools to optimize the PCB design and minimize thermal hotspots.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS131M06IPBSR Overview

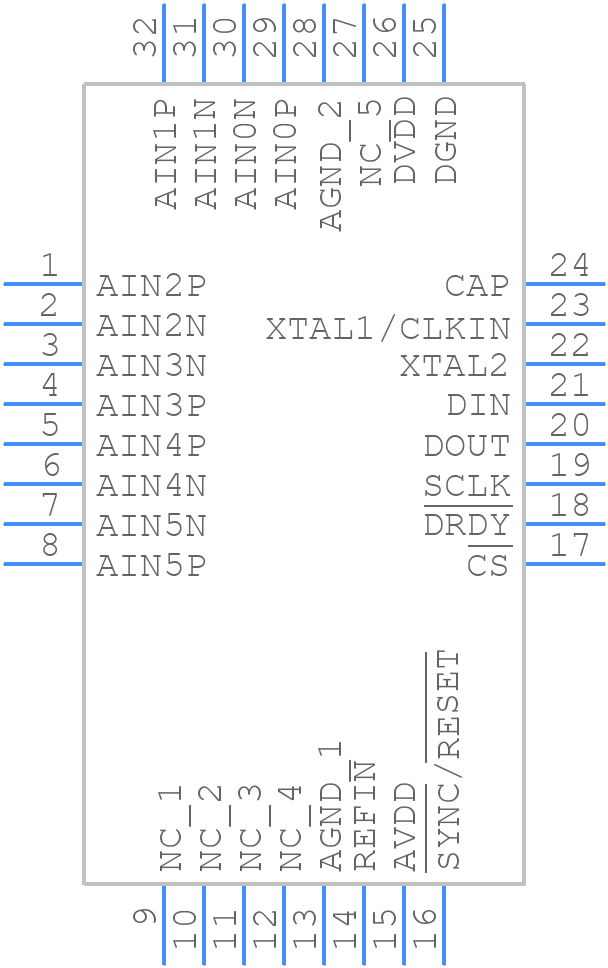

Use the download button to access the ADS131M06IPBSR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS13,
or try a keyword search, such as Analog to Digital Converters
