Texas Instruments provides a layout guide in the datasheet, but it's also recommended to follow general high-speed PCB design guidelines, such as using a solid ground plane, keeping analog and digital signals separate, and using shielded cables for analog inputs. Additionally, it's essential to minimize the distance between the ADC and the analog signal sources, and to use a low-impedance power supply.
The ADS131M06IRSNR has an internal calibration mechanism, but it's recommended to perform an external calibration to achieve the best possible accuracy. This can be done by applying a known input voltage and measuring the output code, then adjusting the gain and offset registers accordingly. It's also important to consider temperature effects and to perform calibration at multiple temperatures if necessary.
The ADS131M06IRSNR has a maximum sampling rate of 400 kSPS, but this rate can be limited by the system's clock frequency, the input signal bandwidth, and the analog input impedance. Additionally, the sampling rate may be reduced at higher temperatures or with certain power-down modes enabled. It's essential to consult the datasheet and to perform thorough system-level testing to determine the maximum achievable sampling rate.
The ADS131M06IRSNR has high-speed digital outputs that require careful handling to avoid signal degradation. It's recommended to use a high-speed digital receiver, such as an FPGA or a high-speed microcontroller, and to follow proper signal termination and routing guidelines. The receiving device should also be able to handle the high data rate and to provide a stable clock signal for data synchronization.
The ADS131M06IRSNR has several power-down modes, including a shutdown mode, a standby mode, and a nap mode. These modes can significantly reduce power consumption, but they may also affect the device's performance and wake-up time. It's essential to consult the datasheet and to carefully evaluate the power-down modes to determine the best approach for a specific application.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS131M06IRSNR Overview

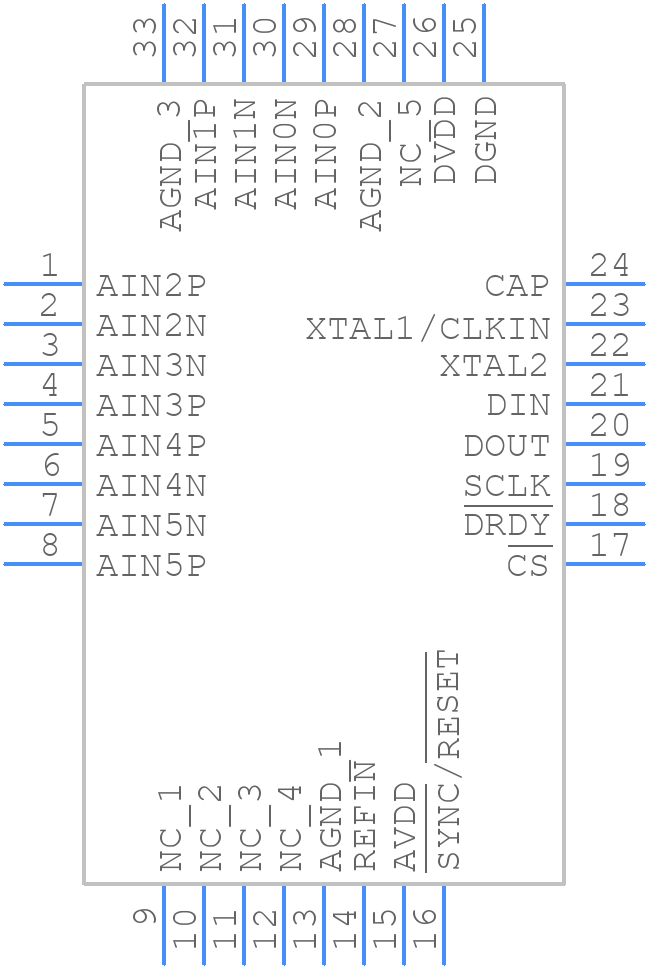

Use the download button to access the ADS131M06IRSNR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS13,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
