Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep analog and digital signals separate. Additionally, use short traces, and avoid crossing digital and analog signals. Refer to the TI application note 'PCB Layout Guidelines for the ADS131M08' for more details.
Optimize the ADC's performance by selecting the correct gain, offset, and clock settings for your application. Use the TI-provided software tools, such as the ADC Performance Calculator, to determine the optimal settings. Additionally, consider the input signal's frequency, amplitude, and impedance when selecting the ADC's settings.
The recommended power-up sequence is to apply the analog power supply (AVDD) first, followed by the digital power supply (DVDD). Ensure that the analog power supply is stable before applying the digital power supply. Refer to the datasheet for more details on the power-up sequence.
The ADS131M08IPBSR has an internal calibration process that is initiated after power-up. The calibration process takes approximately 10ms. During this time, the ADC's outputs are invalid. Wait for the calibration process to complete before taking measurements. Refer to the datasheet for more details on the calibration process.
The ADS131M08IPBSR can handle input voltages up to ±VREF (±4.096V for the internal reference). Exceeding this voltage may damage the device. Ensure that the input signal is within the specified range to avoid damage.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS131M08IPBSR Overview

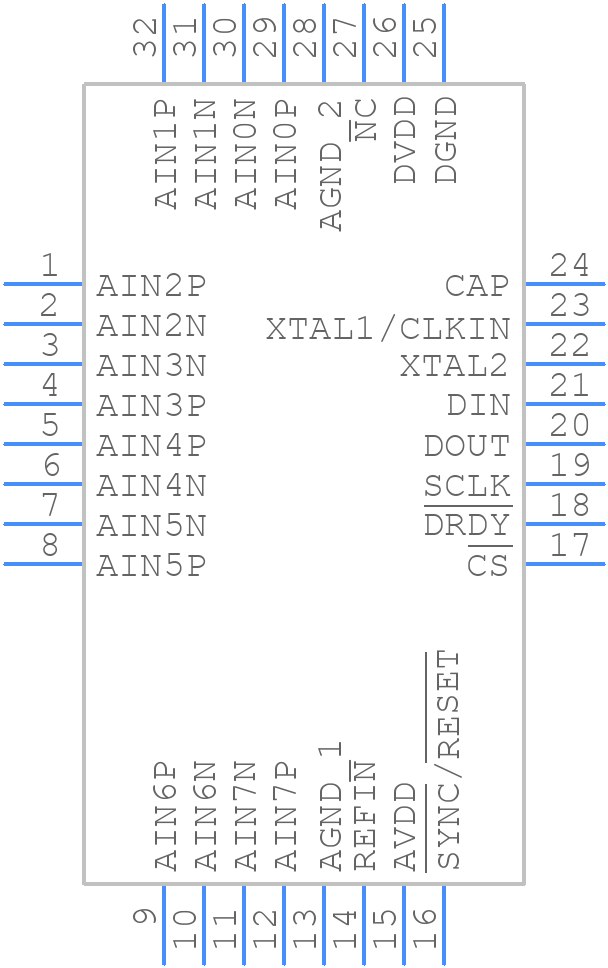

Use the download button to access the ADS131M08IPBSR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS13,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
