ADS131M08IRSNT - Texas Instruments

Description: Analog to Digital Converters - ADC 24-bit, 32-kSPS, 8-channel, simultaneous-sampling, delta-sigma ADC

Download ADS131M08IRSNT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

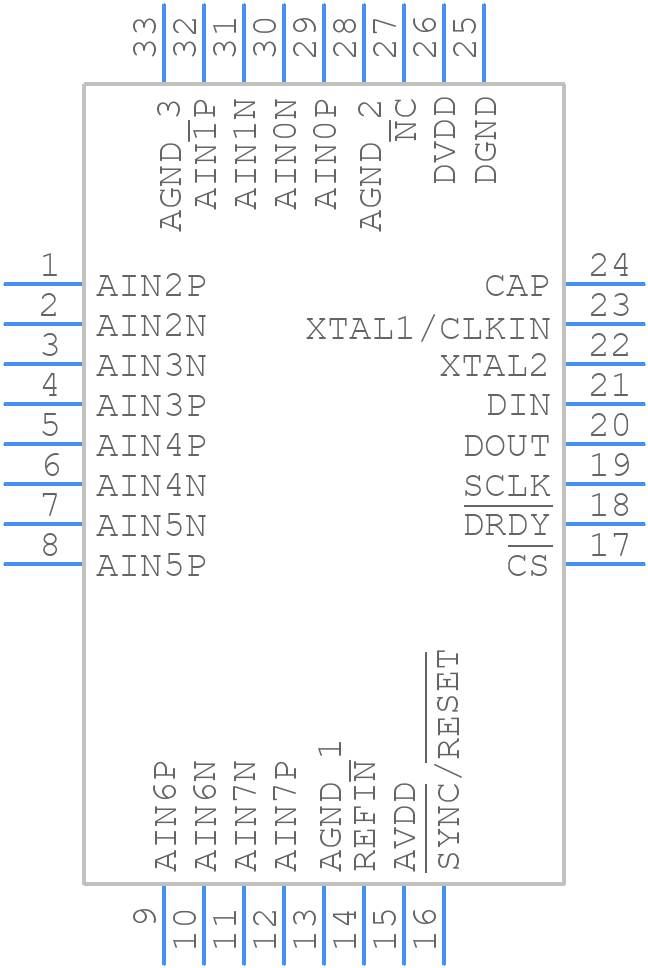

ADS131M08IRSNT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
ADS131M08IRSNT - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RSN (S-PWQFN-N32)-1
click to zoom
3D Models
ADS131M08IRSNT - Texas Instruments - 3D model - Quad Flat No-Lead - RSN (S-PWQFN-N32)-1
click to zoom

ADS131M08IRSNT Details

  • Manufacturer Part Number:

    ADS131M08IRSNT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Input Voltage-Max:

    3.6 V

  • Analog Input Voltage-Min:

    -1.3 V

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    S-PQCC-N32

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Linearity Error-Max (EL):

    0.00075%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    8

  • Number of Bits:

    24

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    2'S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.16SQ,16

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    0.032 MHz

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    7.7 mA

  • Supply Voltage-Min:

    1.65 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

ADS131M08IRSNT Frequently Asked Questions (FAQs)

  • Texas Instruments provides a layout guide and PCB design checklist in the ADS131M08 application note (SLAU445). It's essential to follow these guidelines to ensure optimal performance and minimize noise coupling.
  • The ADS131M08IRSNT has a flexible AFE that can be optimized for different applications. TI provides an AFE design tool (AFEDESIGNCALC) that helps calculate the optimal values for the input resistors, capacitors, and gain settings based on the specific application requirements.
  • The ADS131M08IRSNT has a SPI interface that requires careful handling of the clock, data, and chip select signals. TI provides example code and a software development kit (SDK) for popular microcontrollers, which can help simplify the digital interface and data processing.
  • TI provides guidelines for EMC and EMI compliance in the ADS131M08 application note (SLAU445). It's essential to follow these guidelines, including proper PCB layout, shielding, and filtering, to ensure compliance with regulatory requirements.
  • The ADS131M08IRSNT requires a clean and stable power supply. TI recommends using a low-dropout regulator (LDO) and a decoupling scheme that includes a combination of ceramic and electrolytic capacitors to ensure optimal performance and noise reduction.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

ADS131M08IRSNT Overview

Use the download button to access the ADS131M08IRSNT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS13, or try a keyword search, such as Analog to Digital Converters

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
