Texas Instruments provides a layout and routing guide in the application note 'ADS131M08 Layout and Routing Guidelines' (SLAA745). It recommends keeping analog and digital signals separate, using a solid ground plane, and minimizing trace lengths and loops.
The ADS131M08QPBSRQ1 has an internal calibration mechanism, but it may require additional external calibration depending on the application. Texas Instruments provides a calibration guide in the application note 'ADS131M08 Calibration and Verification' (SLAA746). It recommends performing a system-level calibration using a known input signal and adjusting the gain and offset registers accordingly.
The maximum input voltage range for the ADS131M08QPBSRQ1 is ±VREF (typically ±2.5V). To protect it from overvoltage, use external voltage limiting resistors or clamping diodes, and ensure that the input signal is within the specified range. Additionally, consider using an external overvoltage protection circuit, such as the TIPD126, to prevent damage to the device.
To optimize power consumption, use the lowest possible clock frequency, disable unused channels, and adjust the PGA gain to minimize power consumption. Additionally, consider using the device's power-down modes, such as the 'Power-Down' or 'Standby' modes, to reduce power consumption when the device is not in use.
The recommended clock source for the ADS131M08QPBSRQ1 is a low-jitter, high-frequency clock (typically 10-40 MHz). To ensure clock jitter does not affect performance, use a high-quality clock source, such as a crystal oscillator or a low-jitter clock generator, and consider using a clock jitter filter or a phase-locked loop (PLL) to further reduce jitter.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS131M08QPBSRQ1 Overview

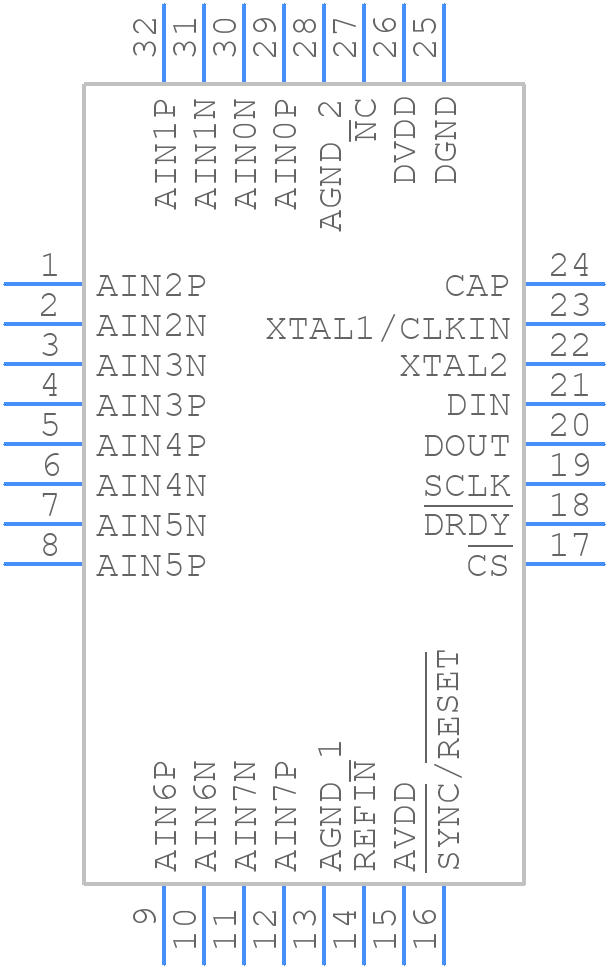

Use the download button to access the ADS131M08QPBSRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS13,
or try a keyword search, such as Analog to Digital Converters
