ADS1602IPFBTG4 - Texas Instruments

Description: Single Channel Single ADC Delta-Sigma 2.5Msps 16-bit Serial 48-Pin TQFP T/R

Download ADS1602IPFBTG4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

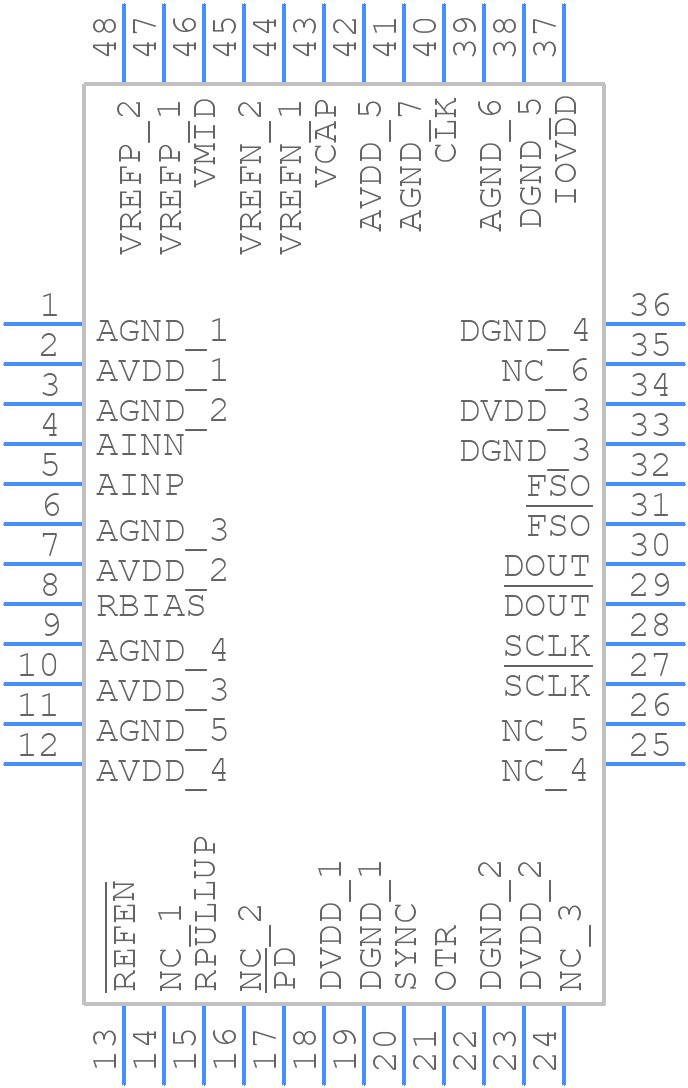

ADS1602IPFBTG4 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
ADS1602IPFBTG4 - Texas Instruments PCB footprint - Quad Flat Packages - Quad Flat Packages - PFB (S-PQFP-G48).
click to zoom
3D Models
ADS1602IPFBTG4 - Texas Instruments - 3D model - Quad Flat Packages - PFB (S-PQFP-G48).
click to zoom

ADS1602IPFBTG4 Details

  • Manufacturer Part Number:

    ADS1602IPFBTG4

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFP

  • Package Description:

    TFQFP-48

  • Pin Count:

    48

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Input Voltage-Max:

    5.25 V

  • Analog Input Voltage-Min:

    4.75 V

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    S-PQFP-G48

  • JESD-609 Code:

    e4

  • Length:

    7 mm

  • Linearity Error-Max (EL):

    0.0014%

  • Moisture Sensitivity Level:

    2

  • Number of Analog In Channels:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TFQFP

  • Package Equivalence Code:

    TQFP48,.35SQ

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    2.5 MHz

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    125 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

ADS1602IPFBTG4 Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended layout and routing guide in the ADS1602IPFBTG4 evaluation module user's guide (SLAU445). It's essential to follow this guide to ensure optimal performance and minimize noise coupling.
  • The ADS1602IPFBTG4 has a programmable analog input filter. To optimize it, you need to consider the signal frequency, noise bandwidth, and desired attenuation. TI provides an analog filter design tool (AFDT) that can help you design and optimize the filter for your specific application.
  • The ADS1602IPFBTG4 can operate with clock frequencies up to 40 MHz. However, the maximum clock frequency may be limited by the specific application, PCB layout, and noise considerations. It's essential to consult the datasheet and perform thorough testing to ensure reliable operation at the desired clock frequency.
  • The ADS1602IPFBTG4 outputs 16-bit digital data in a serial format. You'll need to use a microcontroller or FPGA to receive and process the data. TI provides example code and interface guidelines in the datasheet and application notes to help you handle the digital output data.
  • The ADS1602IPFBTG4 has a typical power consumption of 35 mW at 3.3 V and 20 MSPS. To reduce power consumption, you can use the device's power-down mode, reduce the clock frequency, or use a lower supply voltage. Consult the datasheet for more information on power management and reduction techniques.
