Texas Instruments provides a recommended PCB layout in the ADS4125IRGZT evaluation module documentation, which includes guidelines for component placement, routing, and grounding to minimize noise and ensure optimal performance.
The analog input channels of the ADS4125IRGZT should be terminated with a 50-ohm resistor to match the impedance of the input signal, and a capacitor (e.g., 10nF) to filter out high-frequency noise. Additionally, a series resistor (e.g., 10-20 ohms) can be added to limit the input current and prevent damage to the device.
The maximum clock frequency of the ADS4125IRGZT is 250 MHz, but it can be overclocked up to 300 MHz with reduced performance and increased power consumption. However, it is recommended to operate the device within the specified clock frequency range for optimal performance and reliability.
The ADS4125IRGZT can be configured for differential or single-ended input mode through the use of external resistors and capacitors. For differential input mode, connect the positive and negative input pins to the signal source, and for single-ended input mode, connect the positive input pin to the signal source and the negative input pin to a reference voltage (e.g., GND or VCM).
The power consumption of the ADS4125IRGZT depends on the clock frequency, sampling rate, and operating conditions. To reduce power consumption, operate the device at a lower clock frequency, reduce the sampling rate, or use the device's power-down mode when not in use. Additionally, optimizing the PCB layout and using a low-power voltage regulator can also help reduce power consumption.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
ADS4125IRGZT Overview

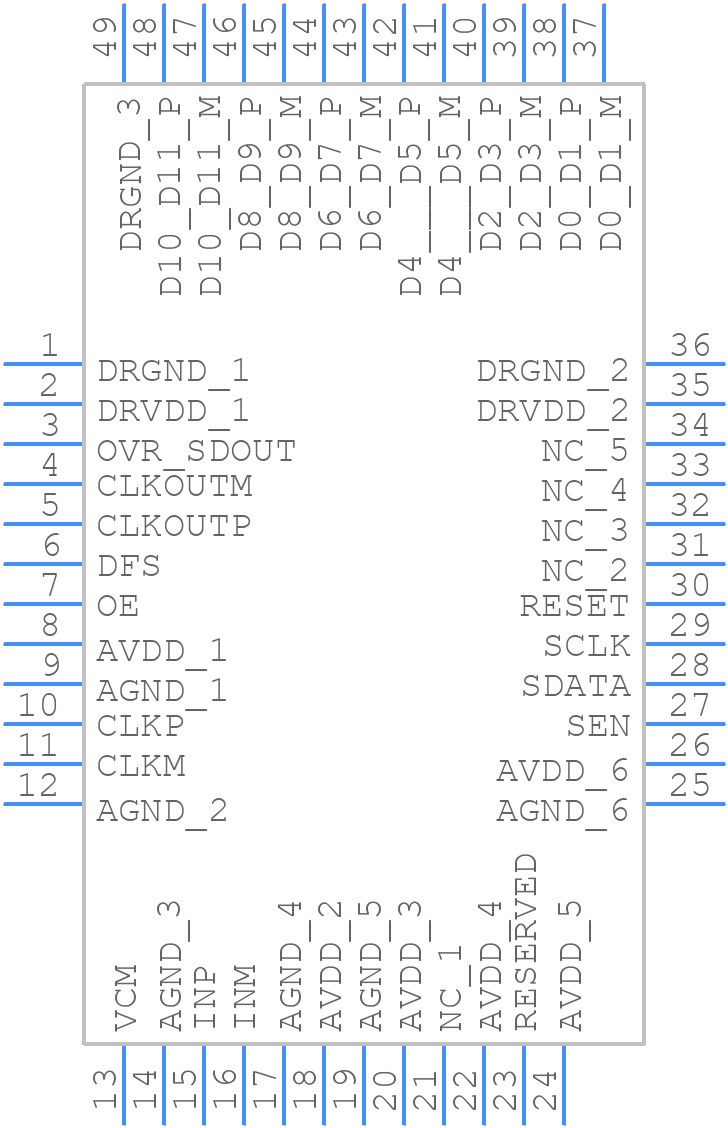

Use the download button to access the ADS4125IRGZT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS41,
or try a keyword search, such as Analog to Digital Converters
