Texas Instruments provides a recommended PCB layout in the ADS4126IRGZR evaluation module documentation, which includes guidelines for component placement, routing, and grounding to minimize noise and ensure optimal performance.
To optimize the analog input signal chain, use a low-noise, low-impedance signal source, and ensure proper filtering and termination. Additionally, consider using a differential input signal to reduce common-mode noise and improve SNR.
The ADS4126IRGZR can operate with clock frequencies up to 640 MHz, but the maximum frequency depends on the specific application and system requirements. It's recommended to consult the datasheet and application notes for guidance on clock frequency selection.
The ADS4126IRGZR outputs 12-bit digital data in a parallel format. To handle the output data, use a digital interface such as an FPGA or a microcontroller with a parallel data capture capability. Ensure proper synchronization and data alignment to avoid data corruption.
The ADS4126IRGZR has a typical power consumption of 330 mW at 3.3 V and 640 MSPS. To reduce power consumption, consider using a lower clock frequency, reducing the supply voltage, or using power-down modes when not in use.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS4126IRGZR Overview

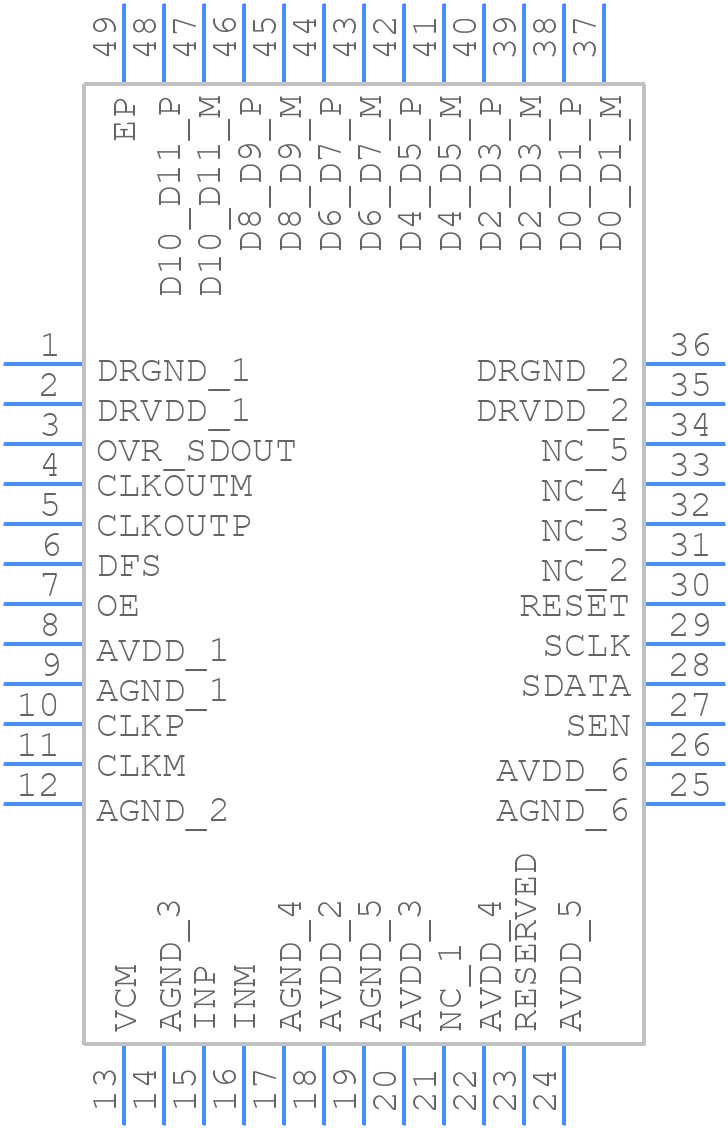

Use the download button to access the ADS4126IRGZR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS41,
or try a keyword search, such as Analog to Digital Converters
