Texas Instruments provides a recommended PCB layout in the ADS4128IRGZR evaluation module documentation, which includes guidelines for component placement, routing, and grounding to minimize noise and ensure optimal performance.
To optimize the analog input signal chain, ensure that the input signal is properly filtered and buffered to reduce noise and distortion. Use a low-pass filter to remove high-frequency noise, and consider using a buffer amplifier to drive the input signal to the ADC.
The maximum clock frequency for the ADS4128IRGZR is 100 MHz, but it can be overclocked up to 120 MHz with reduced performance. However, it's recommended to follow the datasheet guidelines for clock frequency and ensure that the system meets the required timing specifications.
The ADS4128IRGZR outputs 12-bit digital data in a parallel format. To handle the output data, use a digital interface such as an FPGA or a microcontroller with a parallel interface. Ensure that the receiving device can handle the data rate and format, and consider using a FIFO or buffer to manage the data flow.
The power consumption of the ADS4128IRGZR depends on the operating mode and clock frequency. To reduce power consumption, consider using the low-power mode, reducing the clock frequency, or using a lower supply voltage. Additionally, ensure that the device is properly powered down when not in use to minimize standby power consumption.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS4128IRGZR Overview

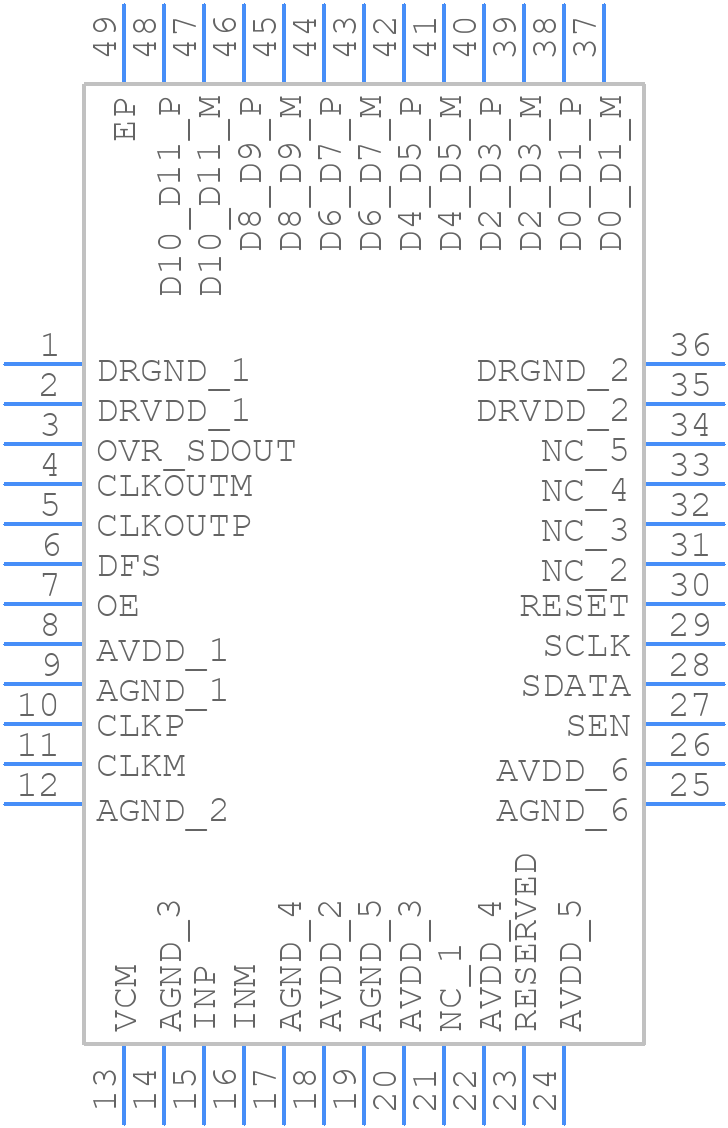

Use the download button to access the ADS4128IRGZR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS41,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
