The optimal clock frequency for the ADS4142IRGZR is between 10 MHz to 50 MHz. However, the device can operate up to 65 MHz, but with reduced performance and increased power consumption.
To optimize the analog input range, ensure that the input signal is within the specified range of 0 to VREF (typically 1.2V or 2.5V). You can also use an external voltage reference to adjust the input range. Additionally, consider using an analog front-end circuit to condition the input signal and improve overall performance.
To minimize noise and ensure optimal performance, follow these layout and routing guidelines: keep analog and digital signals separate, use a solid ground plane, and route analog signals away from digital signals. Also, place decoupling capacitors close to the device and use a low-impedance power supply.
The ADS4142IRGZR has a pipeline latency of 14 clock cycles. To handle this latency, consider using a FIFO or a buffer to store the output data. You can also use the device's built-in latency compensation feature to adjust the output data accordingly.
The ADS4142IRGZR has three power-down modes: Nap, Sleep, and Power-Down. Nap mode reduces power consumption while maintaining the device's internal state. Sleep mode reduces power consumption further, but requires a longer wake-up time. Power-Down mode shuts down the device completely, requiring a full power-up sequence to resume operation.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS4142IRGZR Overview

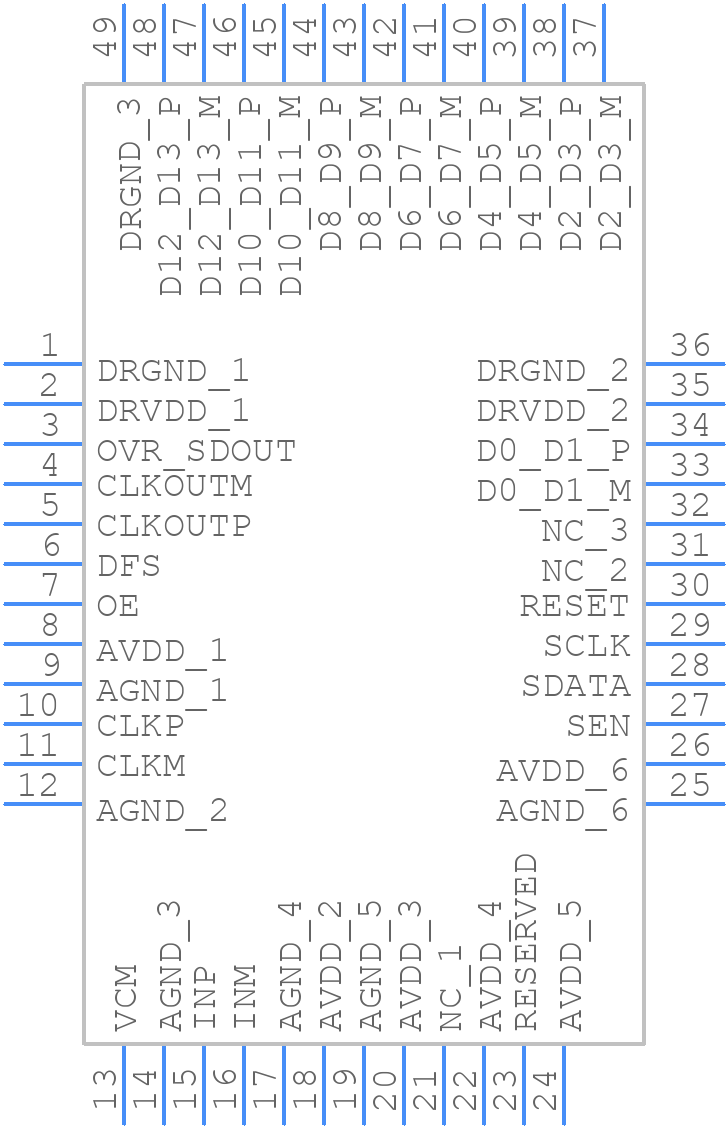

Use the download button to access the ADS4142IRGZR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS41,
or try a keyword search, such as Analog to Digital Converters
