A good PCB layout for the ADS4146IRGZT involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the ADC close to the analog signal sources. Additionally, using a 4-layer PCB with a dedicated power plane and a dedicated ground plane can help reduce noise and improve performance.
To optimize the clock signal for the ADS4146IRGZT, use a high-quality clock source with low jitter and a frequency that is a multiple of the ADC's sampling frequency. Also, ensure that the clock signal is properly terminated and routed to minimize noise and reflections.
The recommended power-up sequence for the ADS4146IRGZT is to first apply the analog power supply (AVDD), followed by the digital power supply (DVDD), and finally the clock signal. This sequence helps prevent damage or malfunction due to incorrect power-up sequencing.
To handle the output data from the ADS4146IRGZT, use a FIFO or a buffer to store the data temporarily, and then transfer it to a processor or memory for further processing. Also, ensure that the data is properly synchronized with the clock signal and that the data format is correctly configured.
When using the ADS4146IRGZT in a high-speed application, key considerations for thermal management include providing adequate heat sinking, using a thermally conductive PCB material, and ensuring good airflow around the device. Additionally, consider using thermal interface materials and heat sinks to further reduce thermal resistance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS4146IRGZT Overview

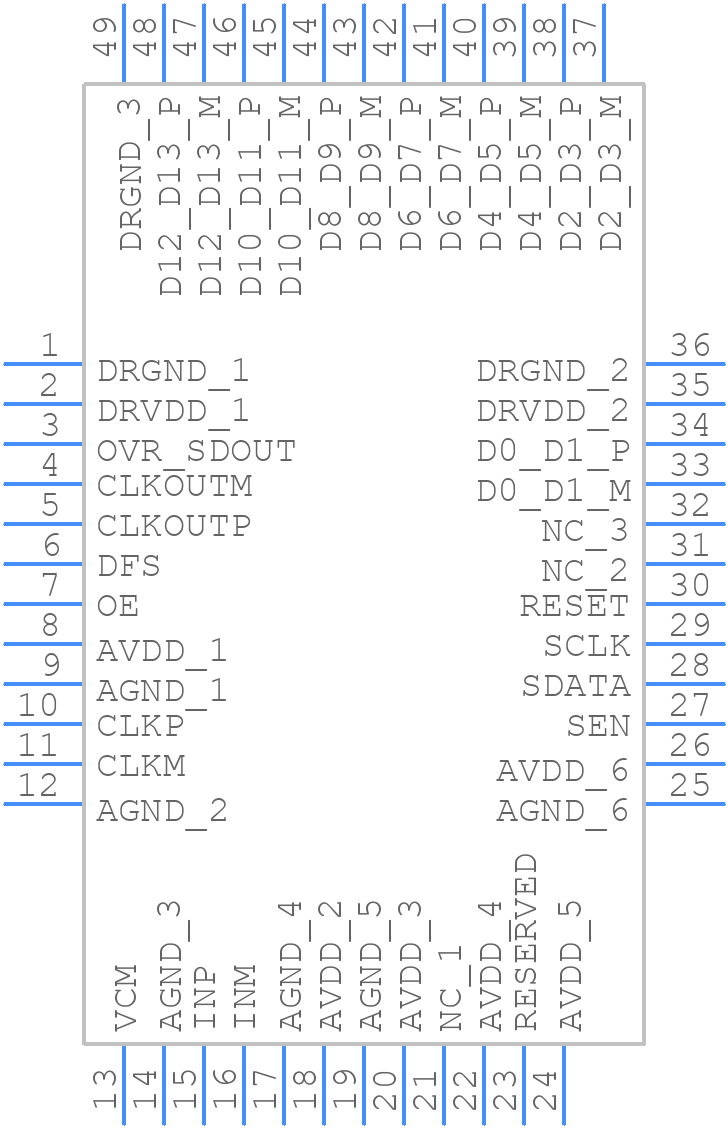

Use the download button to access the ADS4146IRGZT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS41,
or try a keyword search, such as Analog to Digital Converters
