Texas Instruments provides a recommended PCB layout in the ADS4149IRGZ25 evaluation module documentation, which includes guidelines for component placement, routing, and grounding to minimize noise and ensure optimal performance.
The optimal analog input filter design depends on the specific application requirements, such as signal frequency, amplitude, and noise characteristics. TI provides a filter design tool and application notes to help engineers design and optimize their analog input filters for the ADS4149IRGZ25.
The maximum clock frequency for the ADS4149IRGZ25 is 210 MSPS, but it can be overclocked up to 250 MSPS with reduced performance and increased power consumption. However, it's recommended to follow the datasheet specifications for optimal performance and reliability.
To ensure data integrity, it's essential to follow the recommended data transfer protocols and timing diagrams provided in the datasheet. Additionally, implementing error detection and correction mechanisms, such as CRC or ECC, can help detect and correct errors during data transfer.
The power consumption of the ADS4149IRGZ25 varies depending on the operating mode, clock frequency, and other factors. TI provides detailed power consumption tables and graphs in the datasheet and application notes to help engineers estimate and optimize power consumption for their specific application.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS4149IRGZ25 Overview

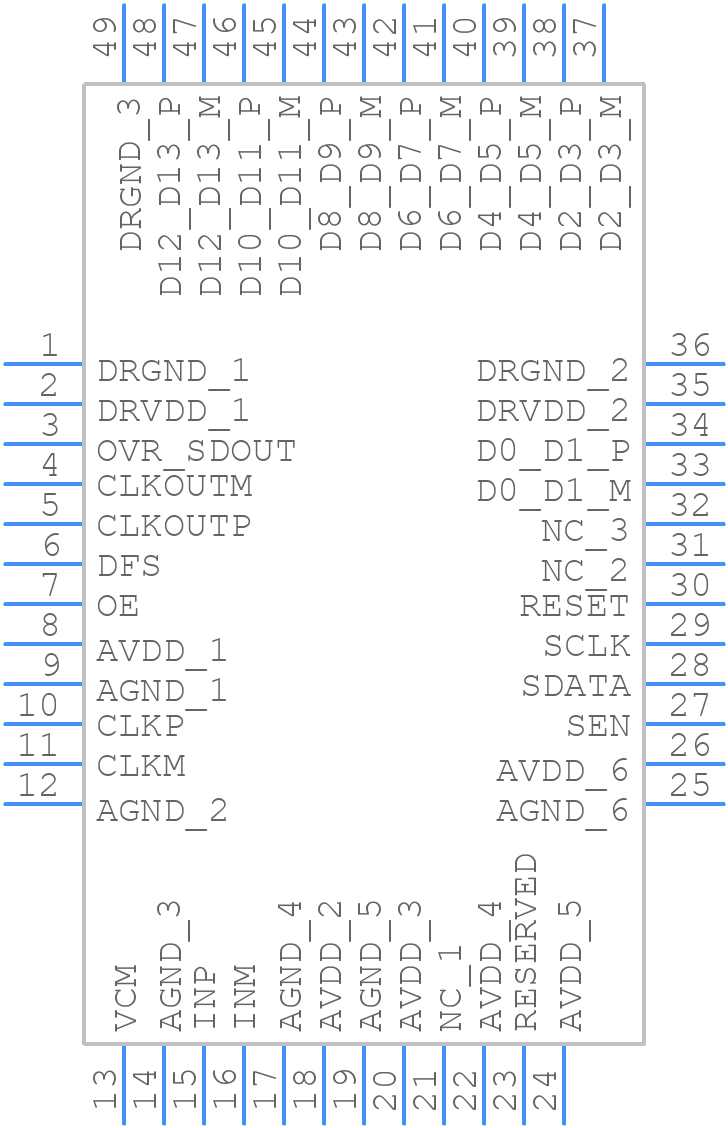

Use the download button to access the ADS4149IRGZ25 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS41,
or try a keyword search, such as Analog to Digital Converters
