A good layout and routing is crucial for the ADS4149IRGZR. TI recommends a 4-layer PCB with a solid ground plane, and to keep the analog and digital signals separate. Also, use short and direct traces for the analog inputs and outputs, and avoid crossing digital signals over analog signals.
To optimize the performance of the ADS4149IRGZR, use a low-noise power supply, decouple the power pins with capacitors, and use a quiet analog ground plane. Also, consider using a ferrite bead or a common-mode choke to filter out high-frequency noise.
The ADS4149IRGZR can achieve a maximum sampling rate of 250 MSPS. However, the actual sampling rate may vary depending on the system clock frequency, the analog input frequency, and the desired signal-to-noise ratio.
The ADS4149IRGZR can be configured for differential or pseudo-differential input modes by setting the appropriate registers. For differential mode, connect the positive and negative inputs to the desired signals, and set the input mode register accordingly. For pseudo-differential mode, connect the positive input to the desired signal and the negative input to a reference voltage, and set the input mode register accordingly.
The latency of the ADS4149IRGZR is approximately 10 clock cycles. This means that there is a delay between the time the analog signal is sampled and the time the digital output is available. This latency should be considered when designing the system, especially in applications that require real-time processing or synchronization with other signals.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS4149IRGZR Overview

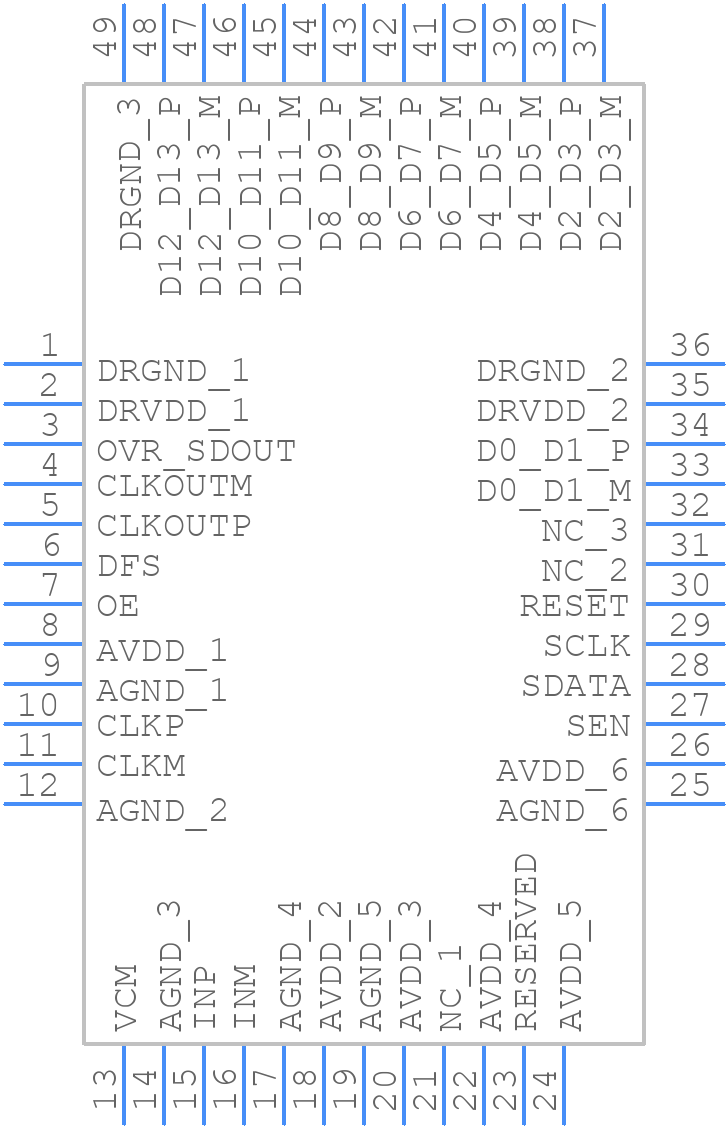

Use the download button to access the ADS4149IRGZR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS41,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
