Part Image

ADS41B29IRGZR - Texas Instruments

Description: Analog to Digital Converters - ADC 12B 250MSPS Buffered Low Power ADC

Download ECAD Model

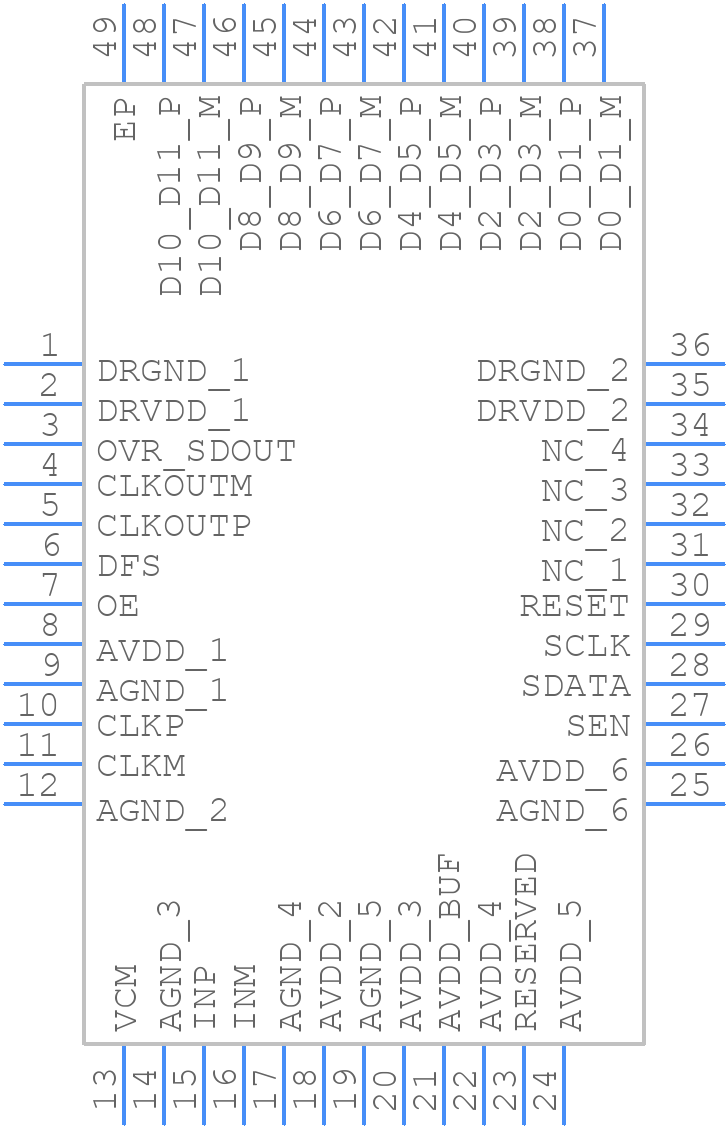

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

PCB Footprints

ADS41B29IRGZR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RGZ0048D
click to zoom

3D Models

ADS41B29IRGZR - Texas Instruments  - 3D model - Quad Flat No-Lead - RGZ0048D
click to zoom

ADS41B29IRGZR Details

  • Manufacturer Part Number:

    ADS41B29IRGZR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    HVQCCN, LCC48,.27SQ,20

  • Pin Count:

    48

  • Reach Compliance Code:

    compliant

  • ECCN Code:

    3A991.C.2

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Texas Instruments

  • Risk Rank:

    7.18

  • Samacsys Modified On:

    2021-09-05 06:26:33

  • YTEOL:

    15

  • Analog Input Voltage-Max:

    1.5 V

  • Analog Input Voltage-Min:

    -1.5 V

  • Converter Type:

    ADC, PROPRIETARY METHOD

  • JESD-30 Code:

    S-PQCC-N48

  • JESD-609 Code:

    e4

  • Length:

    7 mm

  • Linearity Error-Max (EL):

    0.0854%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    1

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    OFFSET BINARY, 2'S COMPLEMENT BINARY

  • Output Format:

    PARALLEL, WORD

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC48,.27SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Power Supplies:

    1.8,3.3 V

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    250 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    1 mm

  • Subcategory:

    Analog to Digital Converters

  • Supply Current-Max:

    115 mA

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    NICKEL PALLADIUM GOLD SILVER

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

Trust Checks

Community Provided
System Verified
Community Approved
Sponsored

ADS41B29IRGZR Overview

Use the download button to access the ADS41B29IRGZR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS41, or try a keyword search, such as Analog to Digital Converters

Parts related to ADS41B29IRGZR

Showing 0 results

ADS41B29IRGZR Alternates

Showing results

Image Part Number Model
Part Image ADS41B29IRGZT Texas Instruments

12-Bit, 250-MSPS Analog-to-Digital Converter (ADC) 48-VQFN -40 to 85

Part Image ADS41B29IRGZ25 Texas Instruments

12 bit 250MSPS Buffered Low Power ADC 48-VQFN -40 to 85
