ADS5122CGHK - Texas Instruments

ADS5122CGHK Details

• Manufacturer Part Number:

  ADS5122CGHK

• Brand Name:

  Texas Instruments

• Part Life Cycle Code:

  Obsolete

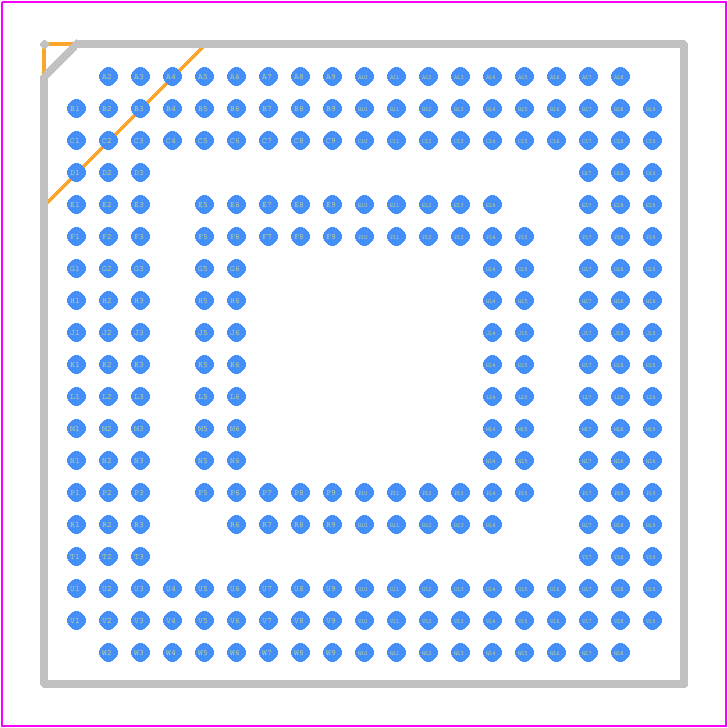

• Part Package Code:

  BGA

• Package Description:

  16 X 16 MM, 0.80 MM PITCH, MICRO, PLASTIC, BGA-257

• Pin Count:

  257

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.01

• Manufacturer:

  Texas Instruments

• YTEOL:

  0

• Analog Input Voltage-Max:

  1.42 V

• Analog Input Voltage-Min:

  0.76 V

• Conversion Time-Max:

  0.2 µs

• Converter Type:

  ADC, PROPRIETARY METHOD

• JESD-30 Code:

  S-PBGA-B257

• JESD-609 Code:

  e0

• Length:

  16 mm

• Linearity Error-Max (EL):

  0.2441%

• Moisture Sensitivity Level:

  3

• Number of Analog In Channels:

  8

• Number of Bits:

  10

• Number of Functions:

  1

• Number of Terminals:

  257

• Operating Temperature-Max:

  70 °C

• Output Bit Code:

  OFFSET BINARY

• Output Format:

  PARALLEL, WORD

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  LFBGA

• Package Equivalence Code:

  BGA257,19X19,32

• Package Shape:

  SQUARE

• Package Style:

  GRID ARRAY, LOW PROFILE, FINE PITCH

• Peak Reflow Temperature (Cel):

  220

• Qualification Status:

  Not Qualified

• Sample Rate:

  65 MHz

• Sample and Hold / Track and Hold:

  TRACK

• Seated Height-Max:

  1.4 mm

• Supply Current-Max:

  375 mA

• Supply Voltage-Nom:

  1.8 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  COMMERCIAL

• Terminal Finish:

  TIN LEAD

• Terminal Form:

  BALL

• Terminal Pitch:

  0.8 mm

• Terminal Position:

  BOTTOM

• Time@Peak Reflow Temperature-Max (s):

  20

• Width:

  16 mm
