A good PCB layout for the ADS52J90ZZE involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the analog input traces. Additionally, it's recommended to place the device close to the analog signal sources and to use a low-ESR capacitor for power decoupling.
To optimize the clock input for the ADS52J90ZZE, use a clock source with a low jitter and a frequency that is within the recommended range (typically 10-100 MHz). Also, ensure that the clock signal is properly terminated and that the clock input is not overloaded.
The recommended power-up sequence for the ADS52J90ZZE is to first apply the analog power supply (AVDD), followed by the digital power supply (DVDD), and finally the clock signal. This sequence helps to prevent latch-up and ensures proper device operation.
The ADS52J90ZZE outputs data in a 16-bit, 2's complement format. To handle the output data, ensure that your digital system is configured to receive 16-bit data and that you are using the correct data format (e.g., signed or unsigned). Additionally, consider using a FIFO or buffer to handle the high-speed data output.
To manage the thermal performance of the ADS52J90ZZE, ensure good airflow around the device, use a heat sink or thermal pad if necessary, and avoid blocking the airflow around the device. Additionally, consider using a thermal interface material to improve heat transfer between the device and the heat sink.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS52J90ZZE Overview

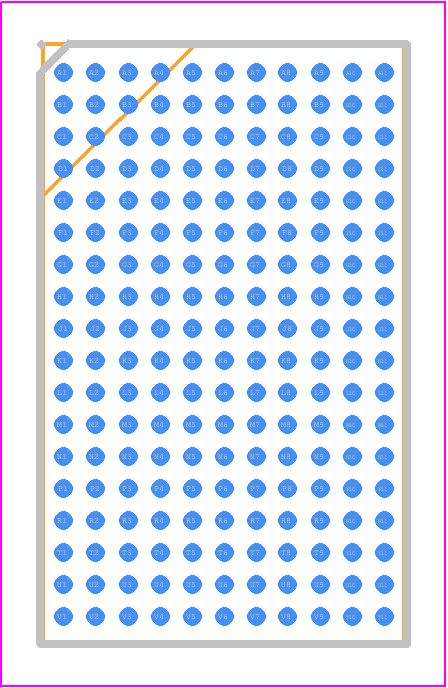

Use the download button to access the ADS52J90ZZE schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS52,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
