Texas Instruments provides a recommended PCB layout in the ADS5409 evaluation module documentation, which includes guidelines for signal routing, grounding, and decoupling. Following this layout can help minimize noise and ensure optimal performance.
The ADS5409IZAYR has LVDS outputs that require proper termination to ensure signal integrity. A 100-ohm differential termination resistor should be placed at the receiving end of the LVDS signal, as close to the receiver as possible.
The ADS5409IZAYR can support clock frequencies up to 1.2 GHz, but the maximum frequency depends on the specific application and system requirements. It's essential to consult the datasheet and perform thorough testing to ensure the device operates within its specifications.
The ADS5409IZAYR has a flexible input mode configuration that can be set through the SPI interface. The device supports various input modes, including DDR, SDR, and others. Consult the datasheet and the device's programming guide for specific configuration details.
The power consumption of the ADS5409IZAYR depends on the specific application, clock frequency, and operating conditions. The device has a typical power consumption of around 1.2 W. To optimize power consumption, consider using the device's power-down modes, reducing the clock frequency, and optimizing the system's power supply design.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS5409IZAYR Overview

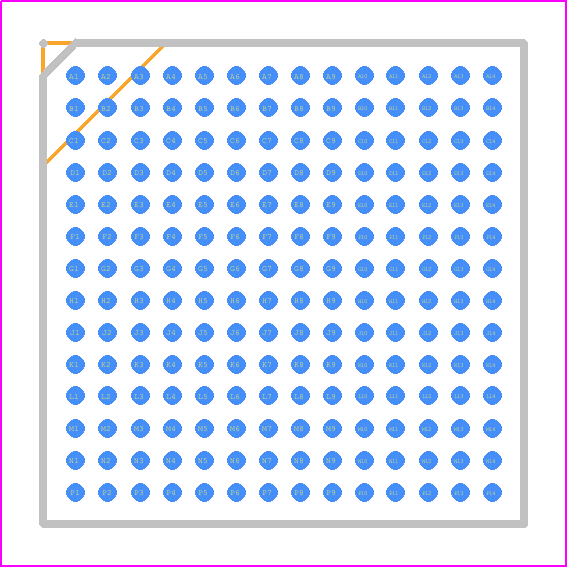

Use the download button to access the ADS5409IZAYR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS54,
or try a keyword search, such as Analog to Digital Converters
