ADS54J60IRMP - Texas Instruments

Description: Dual-Channel, 16-Bit, 1.0-GSPS Analog-to-Digital Converter (ADC)

Download ADS54J60IRMP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ADS54J60IRMP - Texas Instruments - PCB symbol
click to zoom
PCB Footprints

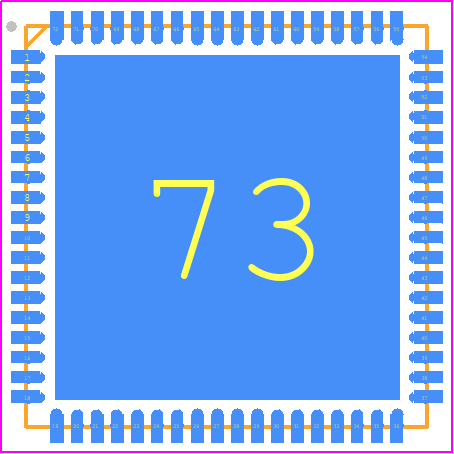

ADS54J60IRMP - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RMP0072A
click to zoom
3D Models
ADS54J60IRMP - Texas Instruments - 3D model - Quad Flat No-Lead - RMP0072A
click to zoom

ADS54J60IRMP Details

  • Manufacturer Part Number:

    ADS54J60IRMP

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    3A001.A.5.A.5

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    Peak-to-peak input voltage range(V) : 1.9

  • Analog Input Voltage-Max:

    1.9 V

  • Analog Input Voltage-Min:

    -1.9 V

  • Converter Type:

    ADC, PROPRIETARY METHOD

  • JESD-30 Code:

    S-XQCC-N72

  • JESD-609 Code:

    e4

  • Length:

    10 mm

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    2

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    72

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    OFFSET BINARY, 2'S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC72,.39SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    1000 MHz

  • Seated Height-Max:

    0.9 mm

  • Supply Current-Max:

    510 mA

  • Supply Voltage-Nom:

    1.9 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    10 mm

ADS54J60IRMP Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADS54J60IRMP involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, using a 4-layer PCB with a dedicated power plane and a dedicated ground plane can help to reduce noise and improve performance.
  • To properly terminate the differential analog input signals, use a 100-ohm differential termination resistor (RT) between the positive and negative analog input pins. This helps to match the impedance of the input signal and reduce reflections.
  • The recommended clocking scheme for the ADS54J60IRMP is to use a single-ended clock input (CLKIN) with a frequency range of 100 MHz to 250 MHz. To ensure proper clock synchronization, use a clock source with low jitter and ensure that the clock signal is properly terminated and routed to the device.
  • To optimize the analog input range and gain settings, adjust the input range and gain settings based on the specific application requirements. Use the device's programmable gain amplifier (PGA) to adjust the gain and optimize the SNR. Additionally, consider using an external amplifier or attenuator to adjust the input signal level to match the device's optimal input range.
  • To ensure proper power supply decoupling and filtering, use a combination of ceramic and electrolytic capacitors to filter the power supply lines. Place a 10-uF ceramic capacitor close to the device's power pins, and use a 10-uF electrolytic capacitor in parallel with a 100-nF ceramic capacitor to filter the power supply lines.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADS54J60IRMP Overview

Use the download button to access the ADS54J60IRMP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS54, or try a keyword search, such as Analog to Digital Converters

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
