Texas Instruments provides a recommended PCB layout in the ADS54T01IZAY evaluation module documentation, which includes guidelines for signal routing, grounding, and decoupling. Following this layout can help minimize noise and ensure optimal performance.
The ADS54T01IZAY has a programmable gain amplifier (PGA) that allows for different input ranges. To configure the device, use the SPI interface to set the PGA gain and offset registers according to the desired input range. Refer to the datasheet and application notes for specific register settings and examples.
The ADS54T01IZAY can sample input frequencies up to 1 GHz, but the maximum frequency that can be sampled accurately depends on the specific application and signal characteristics. In general, the device can accurately sample frequencies up to 500 MHz with minimal distortion and aliasing.
To minimize EMI and noise, use proper termination and routing techniques for the high-speed digital outputs. This includes using differential pairs, adding series termination resistors, and keeping the output traces short and shielded. Additionally, consider using EMI-reducing techniques such as spread spectrum clocking and output filtering.
The ADS54T01IZAY has a typical power consumption of 1.2 W at 1.8 V and 650 MSPS. To optimize power consumption, use the device's power-down modes, reduce the sampling rate, and adjust the PGA gain and offset settings. Additionally, consider using a lower supply voltage and optimizing the system's overall power architecture.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS54T01IZAY Overview

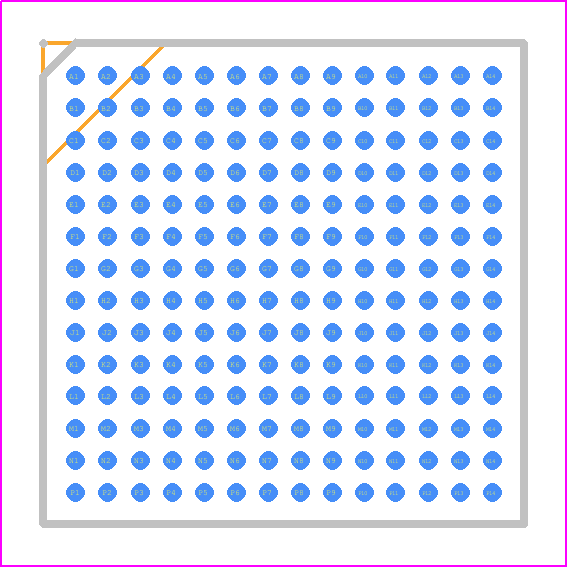

Use the download button to access the ADS54T01IZAY schematic symbol, PCB footprint, and 3D model.
