Texas Instruments provides a recommended PCB layout in the ADS54T02IZAY evaluation module (EVM) user's guide, which includes guidelines for component placement, routing, and grounding to minimize noise and ensure optimal performance.
To optimize the analog input signal chain, use a low-noise, low-impedance signal source, and consider using a buffer amplifier or an anti-aliasing filter to condition the signal before it reaches the ADC. Additionally, ensure that the input signal is within the recommended voltage range and that the input impedance is matched to the ADC's input impedance.
The maximum clock frequency for the ADS54T02IZAY is 250 MHz, but it can be overclocked up to 300 MHz with reduced performance. However, it's recommended to follow the clocking guidelines in the datasheet to ensure optimal performance and to avoid any potential issues with clock jitter or phase noise.
The ADS54T02IZAY outputs 14-bit digital data in a DDR (double data rate) format. To handle the output data, use a digital signal processing (DSP) or a field-programmable gate array (FPGA) to capture and process the data. Ensure that the receiving device is capable of handling the DDR data format and that the clock and data signals are properly synchronized.
The power consumption of the ADS54T02IZAY varies depending on the operating mode and clock frequency. To reduce power consumption, consider using the ADC's power-down mode, reducing the clock frequency, or using a lower supply voltage. Additionally, ensure that the device is properly configured and that any unused features are disabled to minimize power consumption.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS54T02IZAY Overview

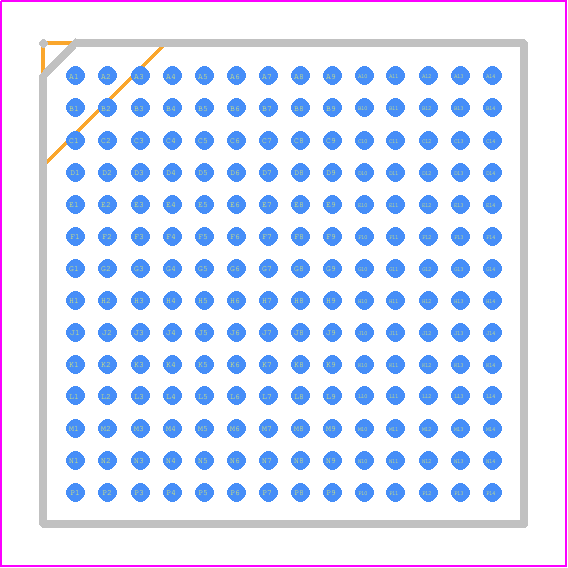

Use the download button to access the ADS54T02IZAY schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS54,
or try a keyword search, such as Analog to Digital Converters
