Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good high-frequency design practices, such as using a solid ground plane, minimizing trace lengths, and using 50-ohm transmission lines for the analog inputs.
The ADS54T04IZAY has a differential input stage, and the optimal termination depends on the source impedance and signal frequency. TI recommends using a 50-ohm termination resistor for most applications, but you may need to adjust this value based on your specific signal characteristics.
The ADS54T04IZAY can operate with clock frequencies up to 250 MHz, but the maximum frequency depends on the specific application and the quality of the clock signal. It's essential to ensure the clock signal meets the jitter and phase noise requirements specified in the datasheet.
The ADS54T04IZAY outputs data in a 16-bit, 2's complement format. You'll need to ensure your digital interface can handle this format and align the data correctly. TI provides guidance on data alignment and formatting in the datasheet and application notes.
The power consumption of the ADS54T04IZAY varies depending on the operating mode and clock frequency. To reduce power consumption, you can use the device's power-down modes, reduce the clock frequency, or use a lower supply voltage (1.8V or 1.9V) while maintaining the required performance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS54T04IZAY Overview

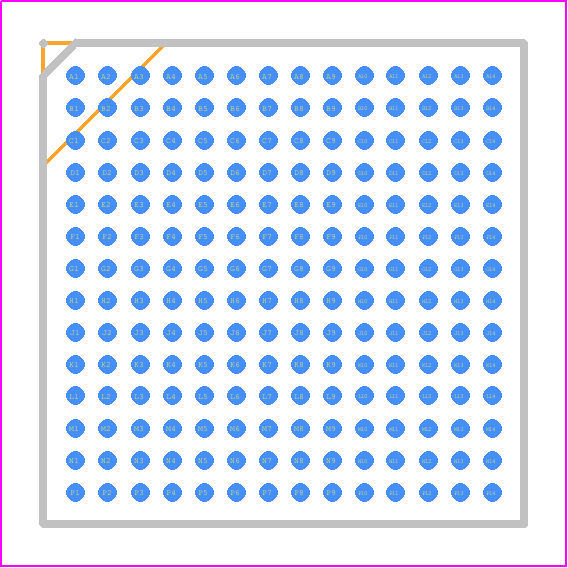

Use the download button to access the ADS54T04IZAY schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS54,
or try a keyword search, such as Analog to Digital Converters
