Texas Instruments provides a recommended PCB layout in the ADS5517IRGZT evaluation module (EVM) user's guide, which includes guidelines for component placement, routing, and grounding to minimize noise and ensure optimal performance.
The ADS5517IRGZT requires a specific termination scheme to ensure proper signal integrity. A 50-ohm termination resistor should be placed close to the analog input pins, and the signal traces should be routed as differential pairs to minimize noise and crosstalk.
The ADS5517IRGZT can operate with clock frequencies up to 125 MHz, but the maximum frequency depends on the specific application and the quality of the clock signal. It's recommended to consult the datasheet and application notes for specific guidance on clock frequency selection.
The ADS5517IRGZT has a programmable gain amplifier (PGA) that can be configured for different gain settings using the SPI interface. The gain settings can be programmed using the PGA gain register, and the specific gain values can be found in the datasheet and application notes.
The power consumption of the ADS5517IRGZT depends on the operating mode, clock frequency, and gain settings. To optimize power consumption, it's recommended to use the lowest possible clock frequency, disable the PGA when not in use, and use the power-down mode when the device is not actively converting data.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS5517IRGZT Overview

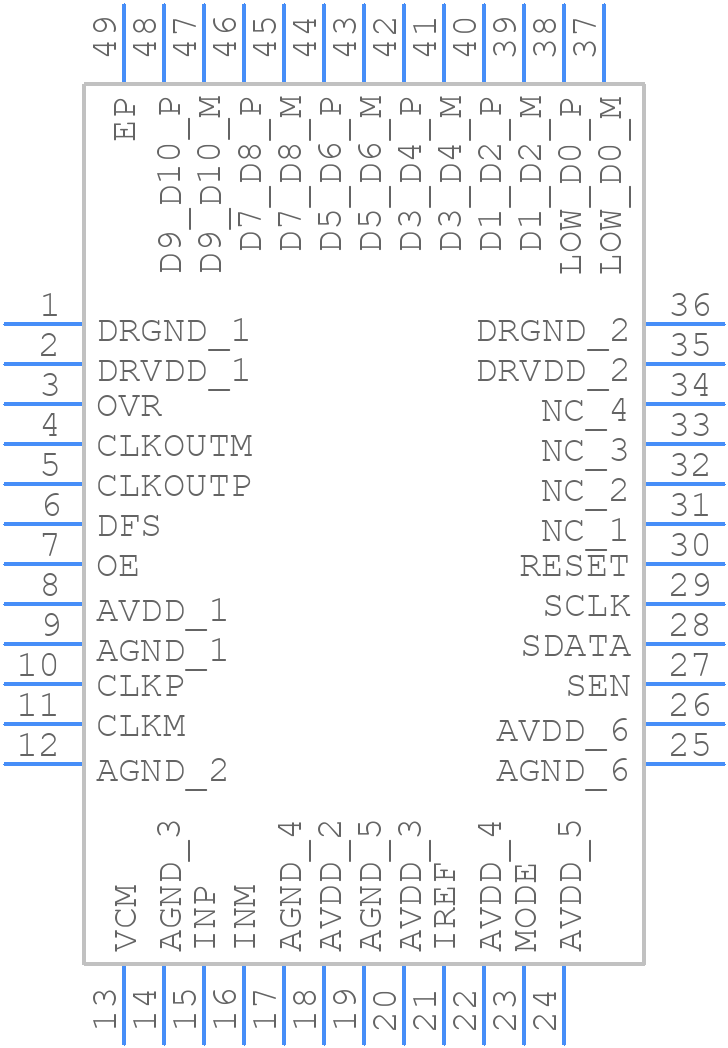

Use the download button to access the ADS5517IRGZT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS55,
or try a keyword search, such as Analog to Digital Converters
