Texas Instruments provides a recommended layout and routing guide in the ADS5525IRGZT evaluation module (EVM) user's guide, which includes guidelines for PCB design, component placement, and signal routing to minimize noise and ensure optimal performance.
The ADS5525IRGZT has a built-in calibration mechanism that can be accessed through the SPI interface. The calibration process involves writing specific values to the device's registers to adjust the gain and offset. Texas Instruments provides a calibration guide in the device's datasheet and application notes.
The maximum sampling rate of the ADS5525IRGZT is 125 MSPS, but it can be adjusted to lower rates to reduce power consumption. The power consumption of the device increases with the sampling rate, so reducing the sampling rate can help to reduce power consumption. However, the optimal sampling rate depends on the specific application requirements.
To minimize EMI, it is recommended to use a low-impedance transmission line, such as a 50-ohm microstrip or stripline, to route the digital outputs. Additionally, using a common-mode choke or a ferrite bead can help to reduce EMI. Texas Instruments also provides guidelines for EMI reduction in the device's datasheet and application notes.
Texas Instruments recommends using a multi-point decoupling scheme, with a combination of ceramic and electrolytic capacitors, to decouple the power supply pins of the ADS5525IRGZT. This helps to reduce noise and ensure stable operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS5525IRGZT Overview

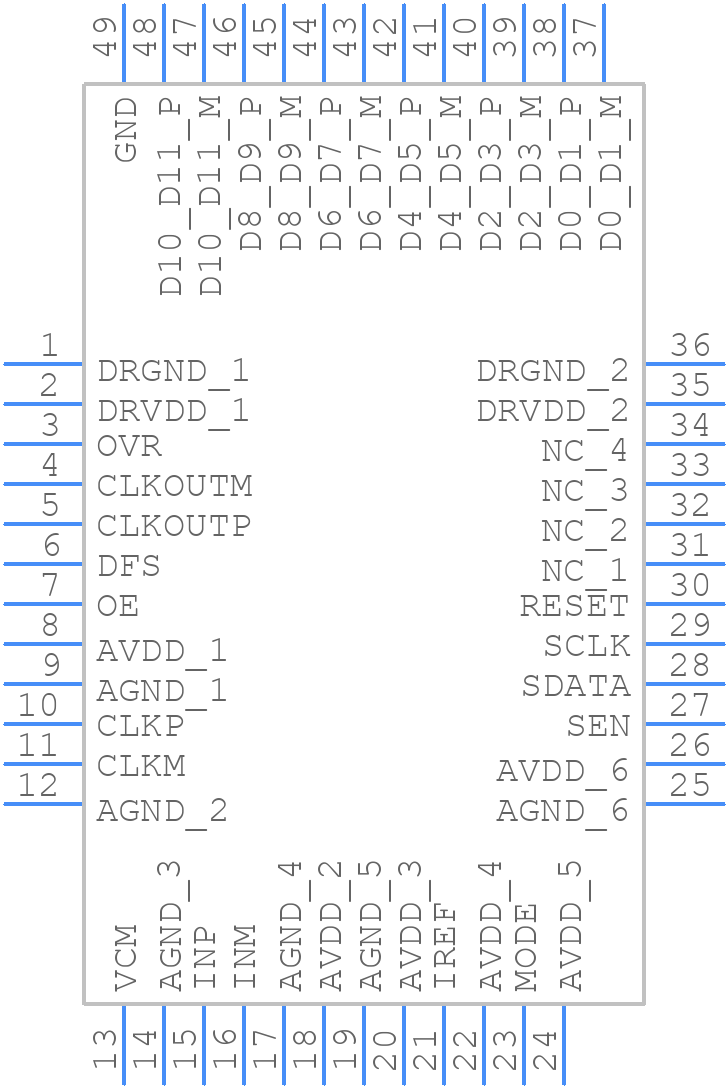

Use the download button to access the ADS5525IRGZT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS55,
or try a keyword search, such as Analog to Digital Converters
