Texas Instruments provides a recommended layout and routing guide in the ADS5527IRGZT evaluation module (EVM) user's guide. It's essential to follow this guide to ensure optimal performance and minimize noise coupling.
The ADS5527IRGZT datasheet provides a general guideline for the analog input filter. However, the optimal filter design depends on the specific application's frequency range, noise environment, and signal amplitude. Engineers can use tools like the TI FilterPro software or consult with TI's application engineers for customized filter design support.
While the datasheet specifies a maximum clock frequency of 100 MHz, the actual achievable clock frequency may be limited by the system's noise environment, PCB layout, and clock signal quality. It's recommended to consult with TI's application engineers or perform thorough system-level testing to determine the optimal clock frequency for a specific design.
The ADS5527IRGZT outputs 14-bit or 16-bit digital data, depending on the mode. Engineers need to ensure that their digital interface and processing system can handle this data format. They may need to implement data formatting, scaling, and error checking to ensure accurate and reliable data processing.
The POR timing is not explicitly specified in the datasheet. However, according to TI's application engineers, the POR timing is typically around 10 ms to 20 ms. Engineers should consult with TI's support team or perform their own testing to determine the exact POR timing for their specific design.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS5527IRGZT Overview

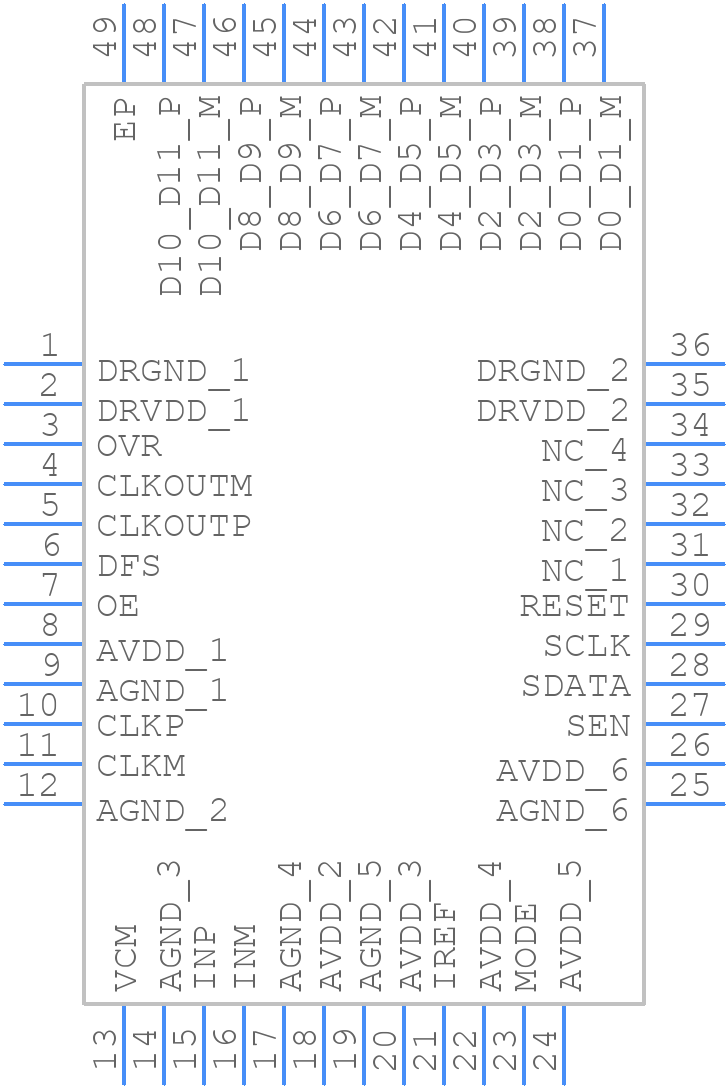

Use the download button to access the ADS5527IRGZT schematic symbol, PCB footprint, and 3D model.
