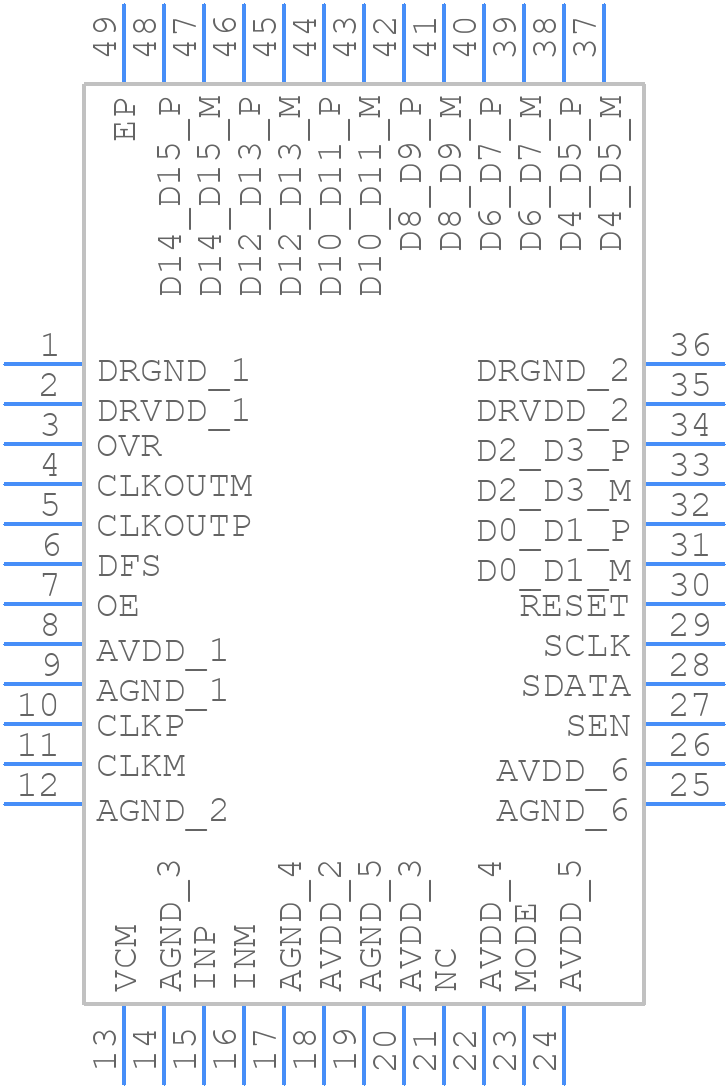

ADS5560IRGZR - Texas Instruments

ADS5560IRGZR Details

• Manufacturer Part Number:

  ADS5560IRGZR

• Brand Name:

  Texas Instruments

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  QFN

• Package Description:

  HVQCCN-48

• Pin Count:

  48

• Country Of Origin:

  Malaysia

• ECCN Code:

  3A991.C.4

• HTS Code:

  8542.39.00.30

• Manufacturer:

  Texas Instruments

• YTEOL:

  15

• Additional Feature:

  Peak-to-peak input voltage range(V) : 3.6

• Analog Input Voltage-Max:

  3.6 V

• Analog Input Voltage-Min:

  -3.6 V

• Converter Type:

  ADC, PROPRIETARY METHOD

• JESD-30 Code:

  S-PQCC-N48

• JESD-609 Code:

  e4

• Length:

  7 mm

• Linearity Error-Max (EL):

  0.013%

• Moisture Sensitivity Level:

  3

• Number of Analog In Channels:

  1

• Number of Bits:

  16

• Number of Functions:

  1

• Number of Terminals:

  48

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Bit Code:

  OFFSET BINARY, 2S COMPLEMENT BINARY

• Output Format:

  SERIAL, PARALLEL, WORD

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HVQCCN

• Package Equivalence Code:

  LCC48,.27SQ,20

• Package Shape:

  SQUARE

• Package Style:

  CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Sample Rate:

  40 MHz

• Sample and Hold / Track and Hold:

  SAMPLE

• Seated Height-Max:

  1 mm

• Supply Current-Max:

  250 mA

• Supply Voltage-Nom:

  3.3 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Nickel/Palladium/Gold (Ni/Pd/Au)

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  7 mm
