Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep the analog and digital signals separate. The analog signals should be routed close to the ADC, and the digital signals should be routed away from the ADC. Additionally, the power supply lines should be decoupled with capacitors and ferrite beads to reduce noise.
To optimize the ADC's performance, you should consider factors such as the input signal frequency, amplitude, and impedance. You should also consider the ADC's clock frequency, sampling rate, and gain settings. Additionally, you may need to adjust the ADC's internal voltage reference, and consider using an external voltage reference if necessary.
The ADS5562IRGZR can handle input voltages up to 6 Vpp differential or 3 Vpp single-ended without damaging the device. However, it's recommended to keep the input voltage within the specified range of ±2.5 V to ensure optimal performance and to prevent damage to the device.
The ADS5562IRGZR has an internal calibration circuit that can be used to calibrate the ADC. You can also use external calibration signals to calibrate the ADC. Additionally, you may need to perform offset and gain calibration to ensure that the ADC is accurately converting the input signal.
The recommended power-up sequence for the ADS5562IRGZR is to first apply the analog power supply (AVDD), followed by the digital power supply (DVDD), and then the clock signal. This sequence helps to prevent damage to the device and ensures proper operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS5562IRGZR Overview

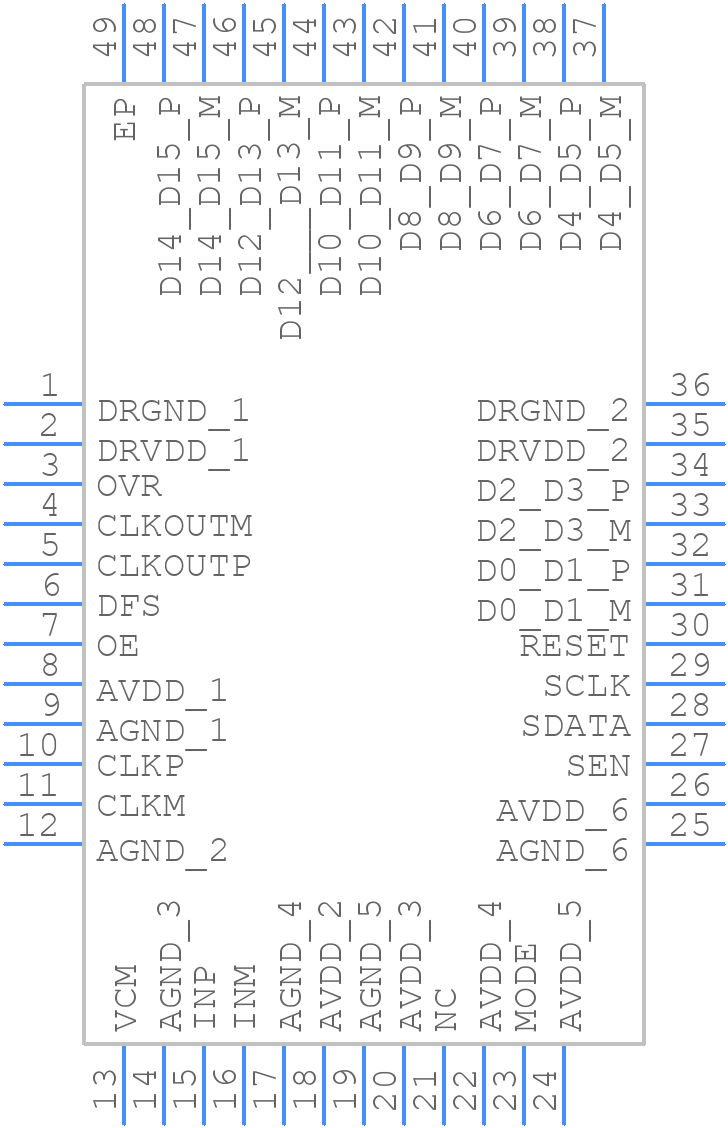

Use the download button to access the ADS5562IRGZR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS55,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
