A good layout and routing practice for the ADS6124IRHBT involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the analog signal traces. Additionally, it's recommended to place the ADC close to the analog signal sources and use shielding to reduce electromagnetic interference (EMI).
To optimize the ADS6124IRHBT's performance, consider the following: choose the optimal sampling rate based on the Nyquist criterion, select the appropriate input range and gain settings, and adjust the clock frequency to minimize jitter. Additionally, consider using the ADC's built-in features like programmable gain amplifiers and offset correction to optimize performance for your specific application.
When powering the ADS6124IRHBT, it's essential to ensure a stable power supply with minimal noise and ripple. Use a high-quality voltage regulator, and consider adding decoupling capacitors to filter out noise. Additionally, ensure that the power supply can provide the required current, and consider using a separate power plane for the ADC to minimize noise coupling.
When interfacing the ADS6124IRHBT with a microcontroller or FPGA, consider the following: use a compatible interface protocol (e.g., SPI or parallel), ensure proper synchronization using the ADC's SYNC pin, and consider using a FIFO or buffer to handle data transfer. Additionally, ensure that the microcontroller or FPGA can handle the ADC's data rate and format.
To ensure reliable operation over temperature, consider the following: provide adequate heat sinking, use a thermally conductive material for the PCB, and ensure good airflow around the device. Additionally, consider using thermal simulation tools to estimate the device's junction temperature and ensure that it remains within the recommended operating range.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS6124IRHBT Overview

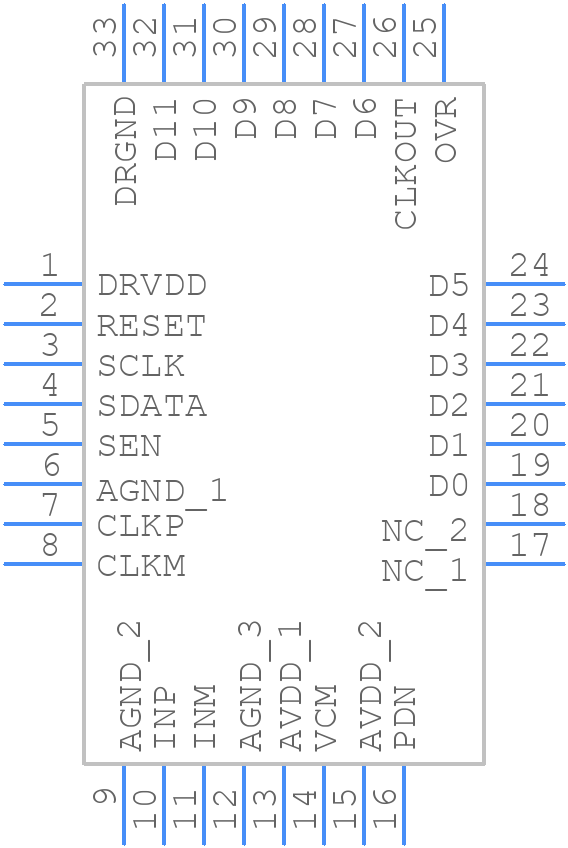

Use the download button to access the ADS6124IRHBT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS61,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
