Texas Instruments provides a recommended layout and routing guide in the ADS6125IRHBT evaluation module (EVM) user's guide. It's essential to follow this guide to minimize noise, ensure signal integrity, and achieve optimal performance.
The clock frequency selection depends on the specific application requirements, such as sampling rate, bandwidth, and Nyquist zone. Texas Instruments provides a clock frequency selection guide in the ADS6125IRHBT datasheet, which can help engineers choose the correct clock frequency for their application.
The input impedance of the ADS6125IRHBT can affect its performance, particularly in terms of signal attenuation and distortion. It's essential to ensure that the input impedance is matched to the source impedance to minimize signal reflections and achieve optimal performance.
The ADS6125IRHBT outputs digital data in a specific format, which requires proper handling and processing. Engineers can use Texas Instruments' digital signal processing (DSP) libraries and software development kits (SDKs) to handle the digital output data and perform tasks such as filtering, scaling, and formatting.
The ADS6125IRHBT can generate heat during operation, which requires proper thermal management to ensure reliability and performance. Engineers should follow Texas Instruments' thermal management guidelines, including using heat sinks, thermal interfaces, and proper PCB design to dissipate heat effectively.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS6125IRHBT Overview

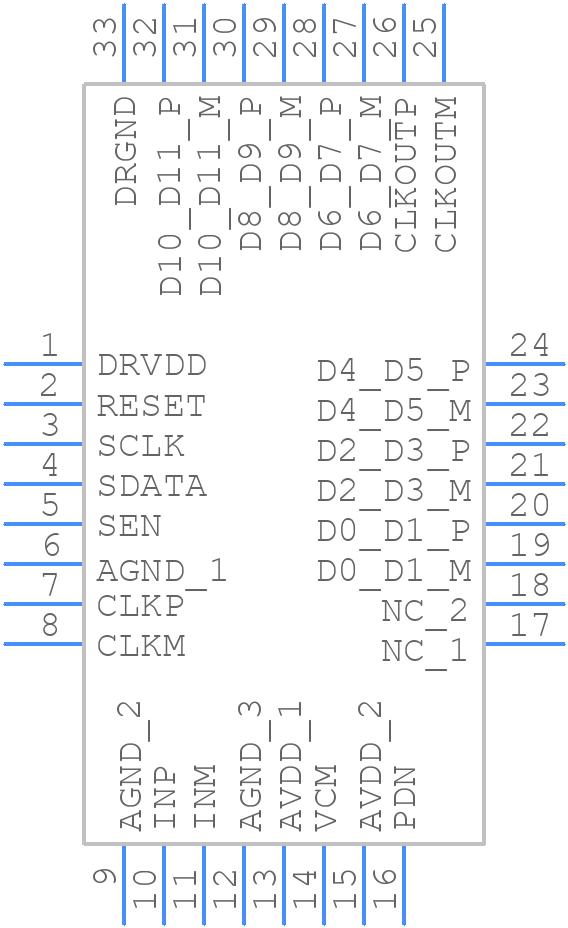

Use the download button to access the ADS6125IRHBT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS61,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
