Texas Instruments provides a recommended layout and routing guide in the ADS6128IRGZT evaluation module (EVM) user's guide, which includes guidelines for PCB layout, component placement, and signal routing to minimize noise and ensure optimal performance.
The ADS6128IRGZT does not require calibration, as it is a self-calibrating ADC. However, it is recommended to follow the recommended power-up sequence and initialization procedure outlined in the datasheet to ensure proper operation.
The ADS6128IRGZT can operate at a maximum sampling rate of 125 MSPS, but this may require careful consideration of the system's clocking and data transfer architecture to ensure that the ADC's output data can be properly captured and processed.
The ADS6128IRGZT outputs 12-bit digital data in a parallel format. The recommended data processing flow involves capturing the output data using a digital signal processor (DSP) or field-programmable gate array (FPGA), followed by digital filtering, gain correction, and data formatting for further processing or transmission.
The ADS6128IRGZT has a typical power consumption of 240 mW at 125 MSPS. To optimize power consumption, it is recommended to use the ADC's power-down mode when not in use, and to optimize the system's clocking and data transfer architecture to minimize power consumption in the surrounding circuitry.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS6128IRGZT Overview

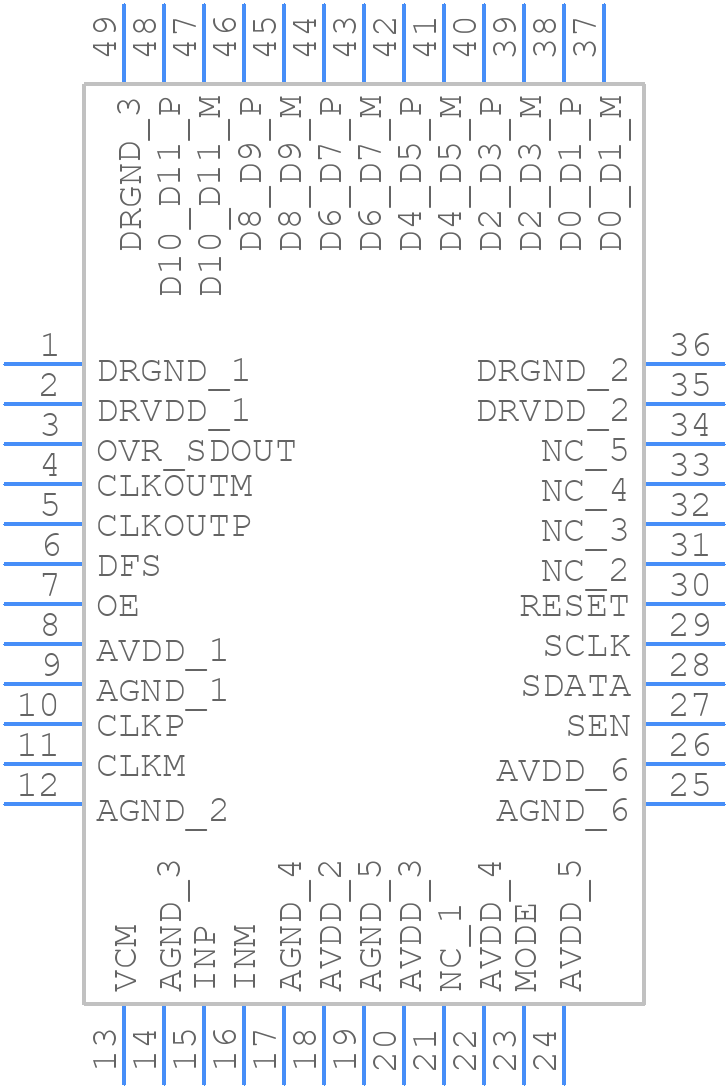

Use the download button to access the ADS6128IRGZT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS61,
or try a keyword search, such as Analog to Digital Converters
