Texas Instruments provides a recommended layout and routing guide in the ADS6129IRGZR evaluation module (EVM) user's guide. It's essential to follow this guide to minimize noise, ensure signal integrity, and achieve optimal performance.
The clock frequency selection depends on the specific application requirements, such as sampling rate, bandwidth, and Nyquist zone. TI provides a clock frequency selection guide in the datasheet, and engineers can also use the ADS6129IRGZR's clock frequency calculator tool to determine the optimal clock frequency.
The input impedance of the ADS6129IRGZR affects its performance, particularly in terms of signal attenuation and distortion. TI recommends using a low-impedance source and ensuring that the input impedance is matched to the ADC's input impedance to minimize signal degradation.
The ADS6129IRGZR outputs digital data in a specific format, which requires proper handling and processing. Engineers can use TI's digital signal processing (DSP) libraries and software development kits (SDKs) to process the output data and extract the desired information.
The ADS6129IRGZR generates heat during operation, and proper thermal management is crucial to ensure reliable operation and prevent overheating. TI recommends using thermal pads, heat sinks, and other thermal management techniques to keep the device within its recommended operating temperature range.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS6129IRGZR Overview

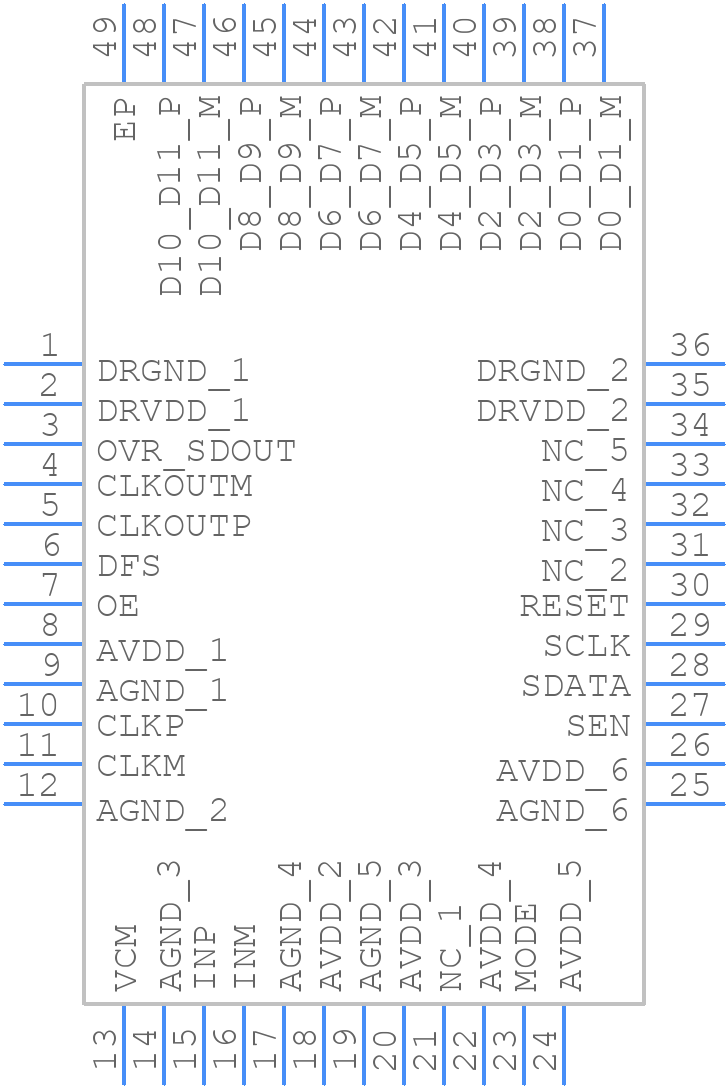

Use the download button to access the ADS6129IRGZR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS61,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
