ADS6143IRHBT - Texas Instruments

Description: 14-Bit, 80-MSPS Analog-to-Digital Converter (ADC)

Download ADS6143IRHBT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

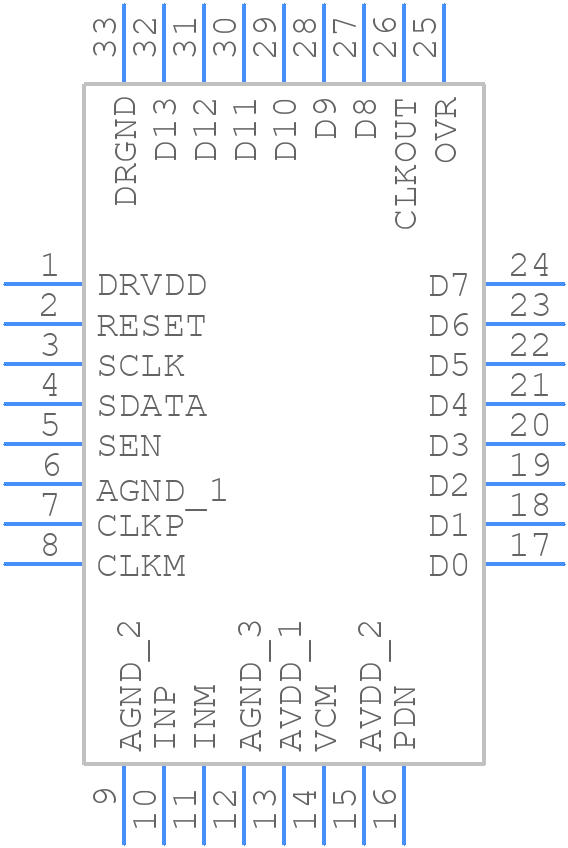

ADS6143IRHBT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
ADS6143IRHBT - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RHB0032E
click to zoom
3D Models
ADS6143IRHBT - Texas Instruments - 3D model - Quad Flat No-Lead - RHB0032E
click to zoom

ADS6143IRHBT Details

  • Manufacturer Part Number:

    ADS6143IRHBT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    HVQCCN-32

  • Pin Count:

    32

  • ECCN Code:

    3A991.C.3

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    Peak-to-peak input voltage range(V) : 2

  • Analog Input Voltage-Max:

    2 V

  • Analog Input Voltage-Min:

    -2 V

  • Converter Type:

    ADC, PROPRIETARY METHOD

  • JESD-30 Code:

    S-PQCC-N32

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    1

  • Number of Bits:

    14

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY, OFFSET BINARY, 2S COMPLEMENT BINARY

  • Output Format:

    PARALLEL, WORD

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    80 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

ADS6143IRHBT Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended layout and routing guide in the ADS6143IRHBT evaluation module (EVM) user's guide. It's essential to follow this guide to minimize noise, ensure signal integrity, and achieve optimal performance.
  • The ADS6143IRHBT has a flexible AFE that can be optimized for specific applications. Engineers can use the TI Analog Engineer's Pocket Reference or the ADS6143IRHBT EVM user's guide to determine the optimal AFE configuration for their application.
  • The maximum clock frequency for the ADS6143IRHBT is 105 MHz. However, the actual clock frequency may be limited by the specific application, PCB layout, and noise considerations.
  • The ADS6143IRHBT outputs 14-bit digital data in a CMOS-compatible format. Engineers can use a digital signal processor (DSP) or a field-programmable gate array (FPGA) to process the output data. TI provides example code and software development kits (SDKs) to help with data processing and analysis.
  • The power consumption of the ADS6143IRHBT varies depending on the operating mode and clock frequency. Engineers can optimize power consumption by using the device's power-down modes, reducing the clock frequency, and using a low-power analog supply voltage. TI provides power consumption estimates and optimization guidelines in the datasheet and application notes.
