A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the analog and digital signal traces separate. Additionally, use a low-ESR capacitor for the analog power supply and a 10uF capacitor for the digital power supply. Refer to the TI application note 'PCB Layout Guidelines for Switching Regulators' for more information.
To optimize performance, ensure that each ADC has its own separate analog power supply and ground plane. Use a common mode filter or a ferrite bead to reduce noise coupling between the ADCs. Also, consider using a clock jitter cleaner or a clock buffer to reduce clock noise.
A low-jitter clock source such as a crystal oscillator or a high-quality clock generator is recommended. To minimize clock jitter, use a clock source with a jitter of less than 100ps, and consider using a clock jitter cleaner or a clock buffer. Additionally, ensure that the clock signal is properly terminated and routed to minimize reflections and noise.
The digital output data from the ADS6144IRHBT can be handled using a FIFO buffer or a DMA controller. A recommended strategy is to use a double-buffering technique to ensure continuous data acquisition and processing. Additionally, consider using a data processing algorithm that can handle the high-speed data output from the ADC.
The ADS6144IRHBT has a maximum junction temperature of 150°C. To ensure reliable operation, ensure good thermal conductivity between the device and the PCB, and use a heat sink or a thermal pad if necessary. Additionally, consider using a thermal interface material to reduce thermal resistance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS6144IRHBT Overview

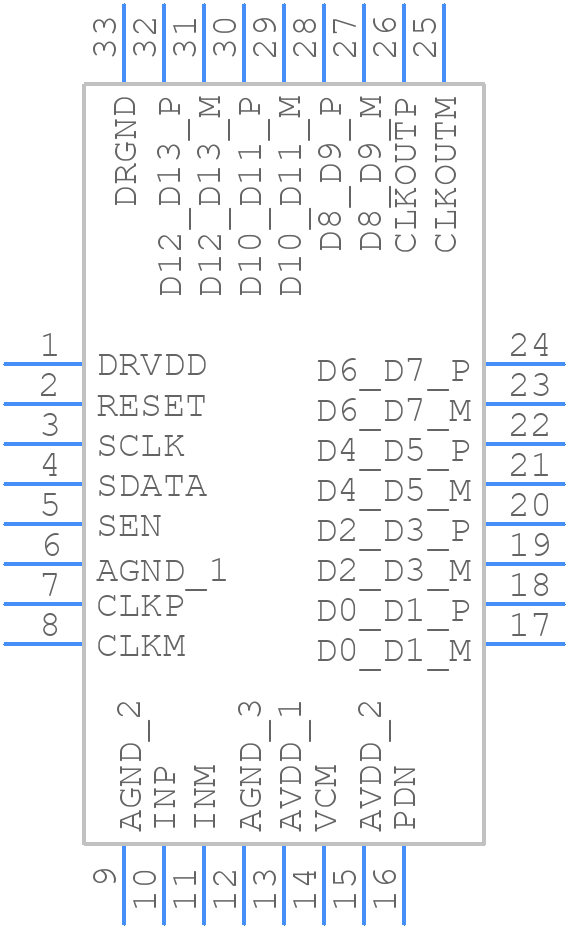

Use the download button to access the ADS6144IRHBT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS61,
or try a keyword search, such as Analog to Digital Converters
