Texas Instruments provides a recommended layout and routing guide in the ADS6145IRHBR evaluation module documentation, which includes guidelines for PCB layout, component placement, and routing to minimize noise and ensure optimal performance.
The optimal analog input filter design depends on the specific application requirements, such as signal frequency, amplitude, and noise characteristics. Texas Instruments provides a filter design tool and application notes to help engineers design and optimize the analog input filter for their specific use case.
The maximum clock frequency for the ADS6145IRHBR is 100 MHz, but it can be overclocked up to 120 MHz with reduced performance and increased power consumption. However, it's recommended to follow the datasheet specifications for optimal performance and reliability.
The ADS6145IRHBR outputs 14-bit or 16-bit digital data, depending on the mode of operation. Engineers can use a digital signal processor (DSP) or a microcontroller (MCU) to handle the digital output data, and Texas Instruments provides software development kits (SDKs) and code examples to facilitate data processing and analysis.
The power consumption of the ADS6145IRHBR depends on the operating mode, clock frequency, and supply voltage. Engineers can reduce power consumption by using the low-power mode, reducing the clock frequency, and optimizing the power supply voltage. Texas Instruments provides power consumption estimates and guidelines in the datasheet and application notes.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS6145IRHBR Overview

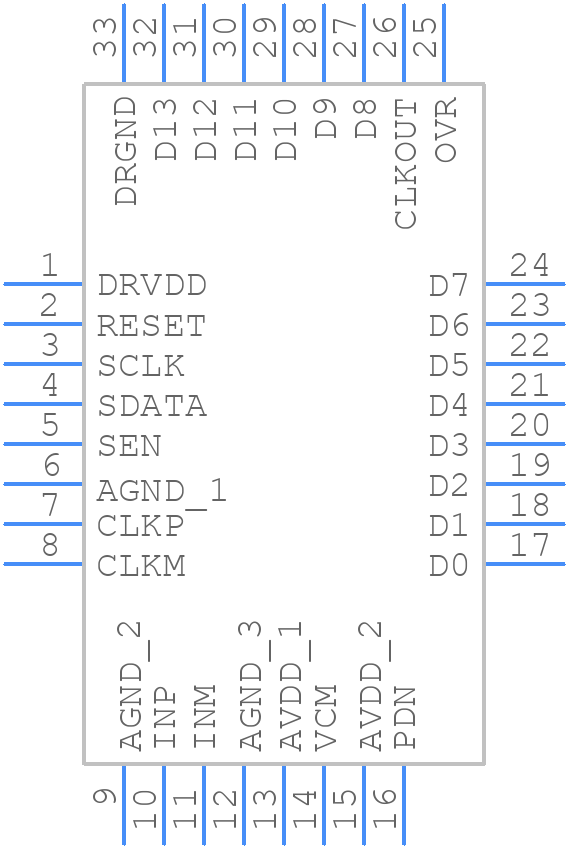

Use the download button to access the ADS6145IRHBR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS61,
or try a keyword search, such as Analog to Digital Converters
