A good layout and routing practice for the ADS6145IRHBT involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the analog input traces. Additionally, it's recommended to place the ADC close to the analog signal sources and use shielding to reduce electromagnetic interference (EMI).
To optimize the ADS6145IRHBT's performance, consider the following: choose the optimal sampling rate based on the Nyquist criterion, select the appropriate input range and gain settings, and adjust the clock frequency to minimize jitter. Additionally, consider using the ADC's built-in features like programmable gain amplifiers and offset correction to optimize performance for your specific application.
Potential sources of error when using the ADS6145IRHBT include thermal noise, clock jitter, and non-linearity. To mitigate these errors, use proper thermal management, ensure a low-jitter clock source, and calibrate the ADC regularly. Additionally, consider using techniques like dithering and averaging to reduce noise and improve accuracy.
To interface the ADS6145IRHBT with a microcontroller or FPGA, use a compatible interface protocol like SPI or parallel interface. Key considerations for data transfer and synchronization include ensuring proper clock synchronization, using a suitable data transfer protocol, and implementing error detection and correction mechanisms.
The ADS6145IRHBT requires a stable power supply with minimal noise and ripple. Ensure reliable operation by using a well-regulated power supply, decoupling capacitors, and a solid power plane. Additionally, consider using a power-on reset circuit to ensure proper startup and operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS6145IRHBT Overview

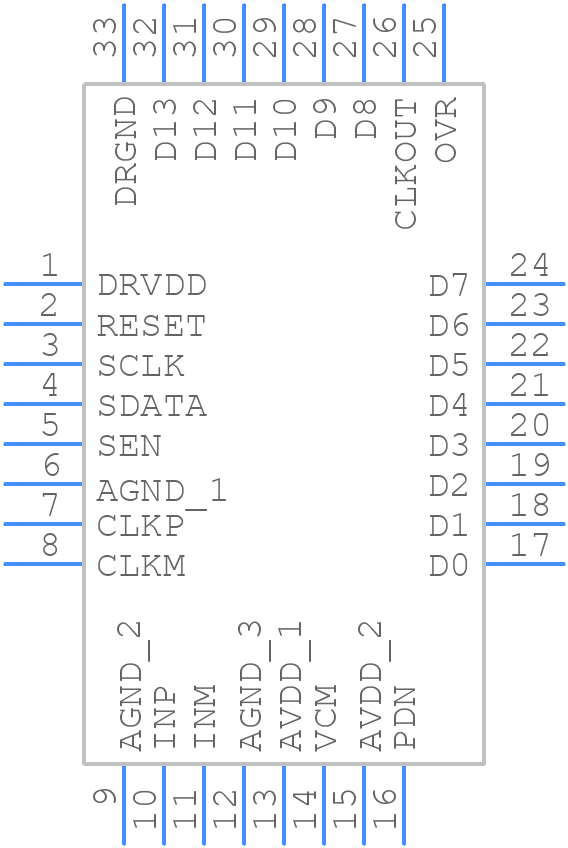

Use the download button to access the ADS6145IRHBT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS61,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
